Question 40/46

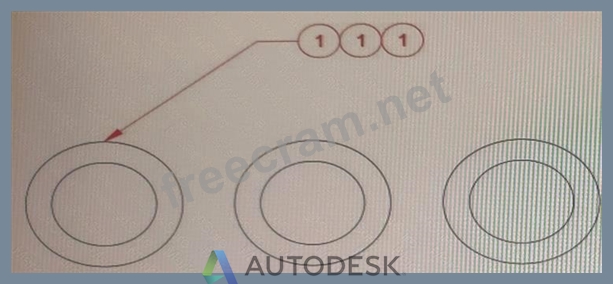

You have three multileaders as shown in exhibit 1. (Refer to the exhibit 1 tab.)
You need to change the display of the multileaders to match the multileaders in exhibit. (Refer to the exhibit 2 tab.)
Which command should you use?
You need to change the display of the multileaders to match the multileaders in exhibit. (Refer to the exhibit 2 tab.)
Which command should you use?
Correct Answer: B
The command that you should use is B. Collect Leader1. The collect leader option groups multiple leaders into one multileader object with a common landing line1. This option is useful when you want to create a single label or callout for multiple objects2.
To use this option, you need to select the MLEADER command and then select Collect Leader from the Options menu. Then you can select two or more existing multileaders that have similar properties and press Enter. The selected multileaders will be collected into one multileader object with a common landing line1.
To use this option, you need to select the MLEADER command and then select Collect Leader from the Options menu. Then you can select two or more existing multileaders that have similar properties and press Enter. The selected multileaders will be collected into one multileader object with a common landing line1.
