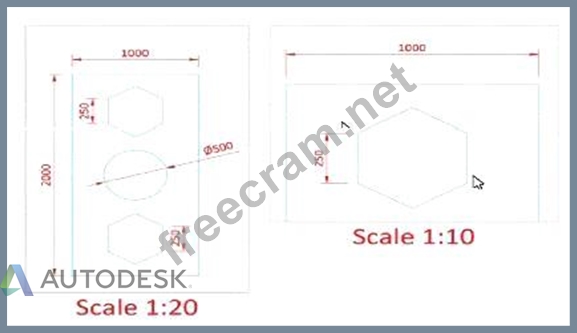

Exhibit. A CAD designer needs two viewports at different scales in a layout The text and the arrowheads of the dimensions need to be displayed al the same size in both viewports in paper space. What should the designer use to display all text and arrowheads at the same size?
Correct Answer: C
Create or Modify Dimension Style: Type DIMSTYLE in the command line and press Enter. Create a new dimension style or modify an existing one. Set as Annotative: In the Dimension Style Manager, go to the Fit tab and check the Annotative option. Apply to Dimensions: Ensure that all dimensions in your drawing use this annotative dimension style. Set Annotation Scale: Set the annotation scale for each viewport so that the dimensions scale correctly in each one. Use the Properties palette to set the Annotation Scale for each viewport. References: * AutoCAD Help Documentation on Using Annotative Dimensions
