* Setting Up Polar Tracking:
* Polar Tracking helps in creating lines at specific angles by snapping to predefined angle increments.
* Required Angles in the Exhibit:

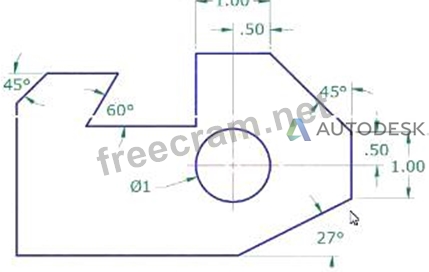

* The exhibit shows angles of 45°, 60°, and 27°.
* Increment Angle: Set to 60° to cover the major angle increments.
* Additional Angle: Add 27° to cover the specific requirement in the drawing.
* Steps to Set Drafting Settings:
* Open the Drafting Settings dialog.
* Go to the Polar Tracking tab.
* Set the Increment Angle to 60°.
* Add 27° to the Additional Angles list.
* Conclusion:
* To draw the exhibit using Polar Tracking, set the Increment angle to 60° and add 27° as an additional angle.
