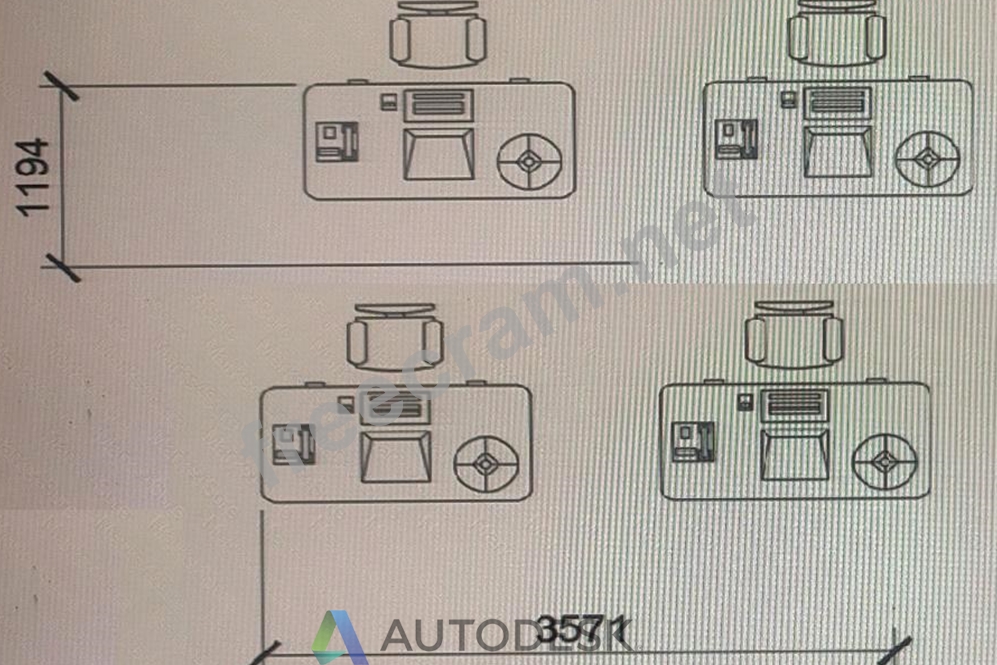

The exhibit shows a workstation arrangement, with horizontal and vertical dimensions, representing the row and column spacings.
Both dimensions have been placed incorrectly, with one origin point of each dimension being placed in the wrong position.
What command should be used to ensure that the dimension objects are placed accurately?
Correct Answer: A
According to the AutoCAD for Design and Drafting documents1, the command that should be used to ensure that the dimension objects are placed accurately is Reassociate (DIMREASSOCIATE)2. This command associates or reassociates selected dimensions to objects or points on objects3. You can also control whether new dimensions are associative by checking the option Make New Dimensions Associative in the User Preferences tab4.
