Explanation:

1. Reviewing the Construction Estimate
The listed components are:
* Architectural Precast Panels - exterior cladding
* Aluminum Storefront Windows - glazing system
* Prefinished Metal Sill Flashing - weatherproofing at sill
* Sealant - for joints between components
No line item appears for thermal insulation.
2. Identifying the Missing Element in the Axonometric Detail

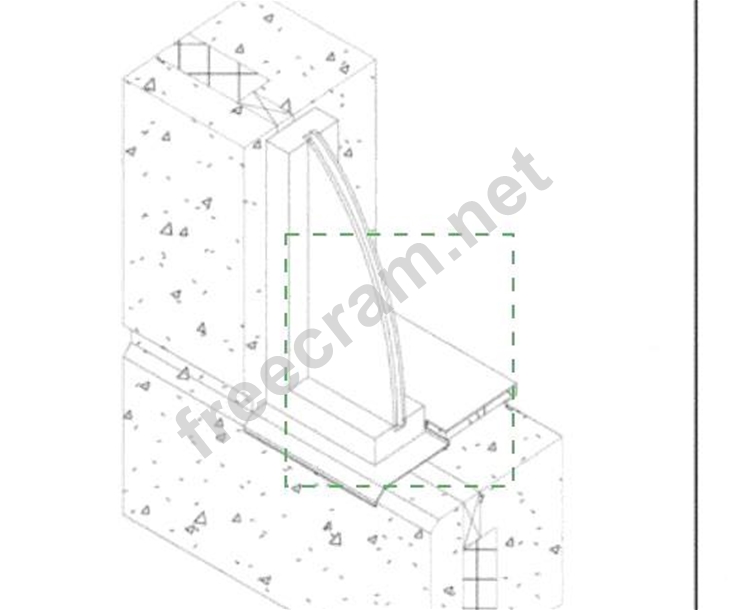

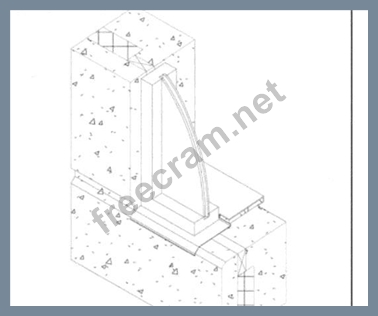

Looking at the drawing:
* The detail shows precast concrete panel cladding outside.
* A storefront frame and glazing in the opening.

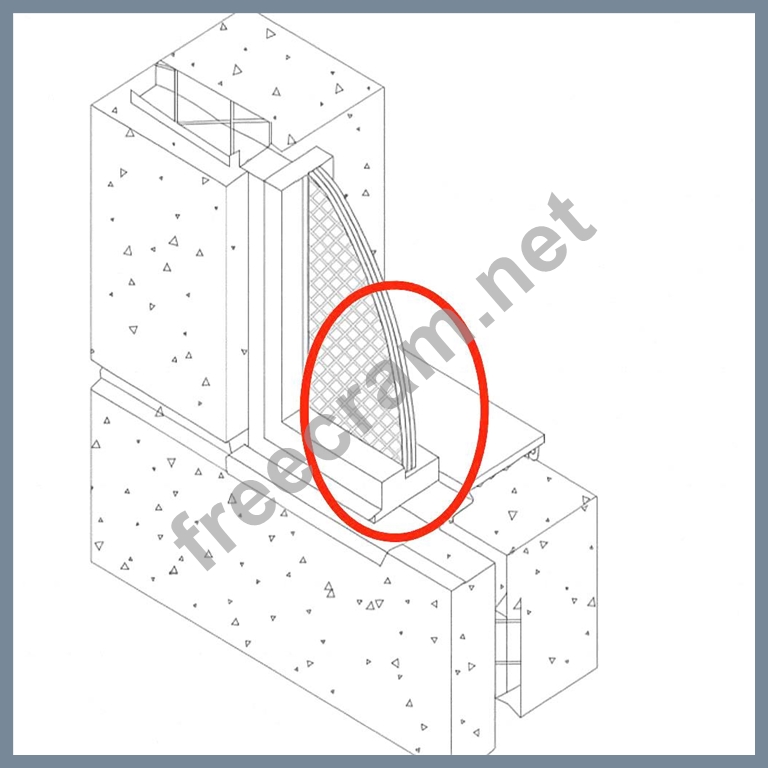

* There is a hatched layer behind the precast in the stud cavity area - this represents continuous insulation.
* The insulation is a required component for the wall to meet energy code R-value/U-factor requirements (per IECC or ASHRAE 90.1).
3. Why This is Critical
* Insulation is essential for thermal performance, occupant comfort, and energy efficiency.
* Omitting it from the estimate could cause:
* Noncompliance with code.
* Incomplete cost budgeting.
* Change orders during construction.
* In ARE 5.0 PDD, architects must check that all components of an assembly are represented in the cost estimate.
4. References
* NCARB ARE 5.0 Handbook - PDD Content Area 3: Integration of Building Materials & Systems
* Architectural Graphic Standards - Precast wall sections with insulation
* Building Construction Illustrated (Ching) - Continuous insulation in wall assemblies
* Energy Code References: IECC Table C402.1.3 for minimum continuous insulation requirements in exterior walls
