Scenario: The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, layer 2 connectivity, FHRP services, and, device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.

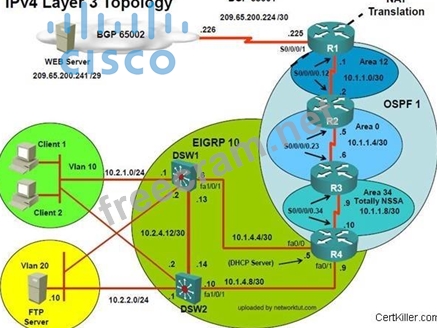

Figure 1
Figure 2
Trouble Ticket Statement
Client 1 is able to ping 209.65.200.226 but not the Web Server at 209.65.200.241. Initial troubleshooting shows and R1 does not have any BGP routes. R1 also does not show any active BGP neighbor Configuration on R1
router bgp 65001
no synchronization
bgp log-neighbor-changes
network 209.65.200.224 mask 255.255.255.252
neighbor 209.56.200.226 remote-as 65002
no auto-summary
R1#sh bgp ipv4 unicast neighbors
BGP neighbor is 209.56.200.226, remote AS 65002, external link
BGP version 4, remote router ID 0.0.0.0
BGP state = Idle
Last read 00:00:20, last write 00:00:20, hold time is 180, keepalive interval is 60 seconds Message statistics:
InQ depth is 0
OutQ depth is 0
Sent Rcvd
Opens: 0 0
Notifications: 0 0
Updates: 0 0
Keepalives: 0 0
Route Refresh: 0 0
Total: 0 0
Default minimum time between advertisement runs is 30 seconds
For address family: IPv4 Unicast
BGP table version 2, neighbor version 0/0
Output queue size: 0
Index 1, Offset 0, Mask 0x2
1 update-group member
Sent Rcvd
Prefix activity: ---- ----
Prefixes Current: 0 0
Prefixes Total: 0 0
Implicit Withdraw: 0 0
Explicit Withdraw: 0 0
Used as bestpath: n/a 0
Used as multipath: n/a 0
Outbound Inbound
Local Policy Denied Prefixes: -------- -------
Total: 0 0
Number of NLRIs in the update sent: max 0, min 0
Connections established 0; dropped 0
Last reset never
External BGP neighbor not directly connected.
No active TCP connection
The Fault Condition is related to which technology?
