(Ticket 12: DHCP Issue Topology Overview)
Scenario: The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, layer 2 connectivity, FHRP services, and, device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
- Client should have IP 10.2.1.3
- EIGRP 100 is running between switch DSW1 & DSW2
- OSPF (Process ID 1) is running between R1, R2, R3, R4
- Network of OSPF is redistributed in EIGRP
- BGP 65001 is configured on R1 with Webserver cloud AS 65002
- HSRP is running between DSW1 & DSW2 switches

Figure 1

Figure 2
Question:
Scenario: The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, layer 2 connectivity, FHRP services, and, device security, a trouble ticket has been opened indicating DSWA will not become the active outer for HSRP group 10.

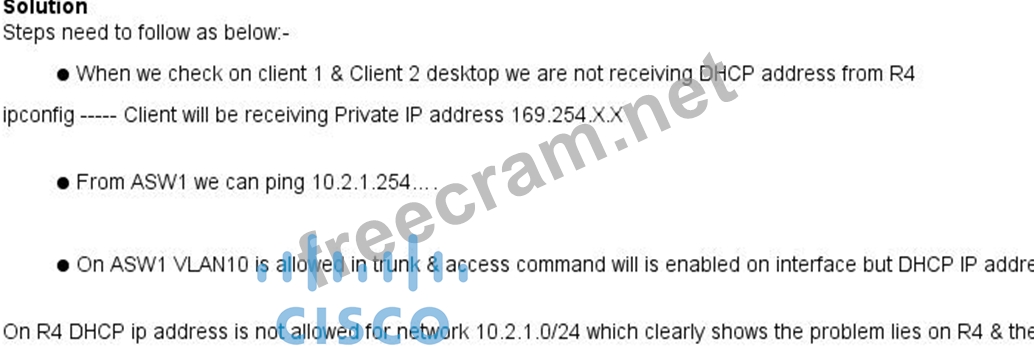

Configuration on R4 was:
!
ip dhcp exclude 10.2.1.1-10.2.1.253
!
The fault condition is related to which theconology?
