Question 57/64

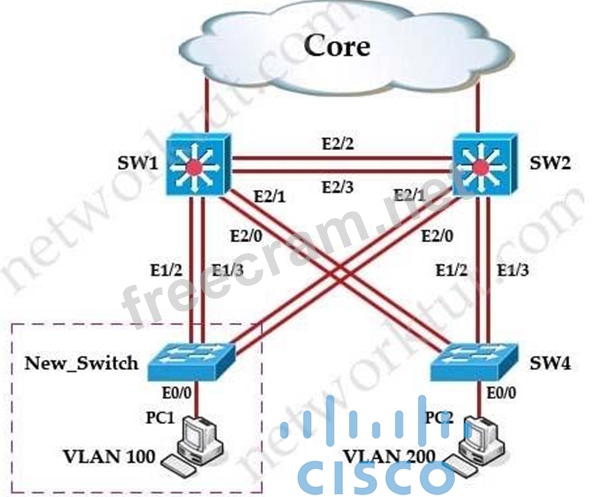

SW1 Switch Management IP address is not pingable from SW4. What could be the issue?

A. Management VLAN not allowed in the trunk links between SW1 and SW4

B. Management VLAN not allowed in the trunk links between SW1 and SW2

C. Management VLAN not allowed in the trunk link between SW2 and SW4

D. Management VLAN ip address on SW4 is configured in wrong subnet

E. Management VLAN interface is shutdown on SW4

Correct Answer: D

Explanation/Reference:
From the output of the "show vlan" (or "show running-config") command on SW1, we learn VLAN 300 is named "Management_VLAN" so we need to check the connection of VLAN 300 between SW1 and SW4.

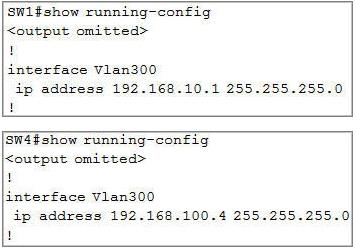

Issue the "show running-config" on SW1 & SW4 to check the IP addresses of their Interface VLAN:

We can see that the IP addresses of these two interfaces are not in the same subnets (192.168.10.1/24 &
192.168.100.4/24). We can double check the IP address of interface VLAN 30 on Sw2 to see it belongs to
192.168.10.0/24 subnet.
