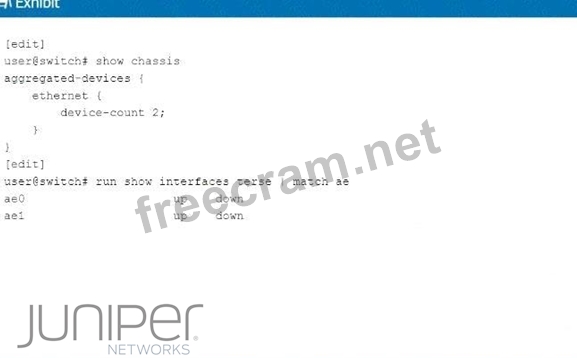

In the exhibit, theae0andae1interfaces are in alink downstate. This occurs when no physical interfaces (member interfaces) have been added to theLAG (Link Aggregation Group)interfaces, or the member interfaces are not operational.
Step-by-Step Breakdown:
* LAG Configuration:ALAGinterface (aggregated Ethernet interface) is a logical interface that combines multiple physical interfaces for redundancy and increased bandwidth. The LAG will only be operational if at least one member interface is active and configured correctly.
* No Operational Member Interfaces:If no member interfaces are added or if the member interfaces are down, the LAG will remain in adownstate, as shown in the exhibit for ae0 and ae1.
* Resolution:Verify that physical interfaces have been added to the LAG using commands like:
LAG Interface Status: In Juniper, the link status of the LAG depends on its member interfaces, which must be operational for the LAG to function.
