see the explanation for all step by step solution with all explanation.
Explanation:

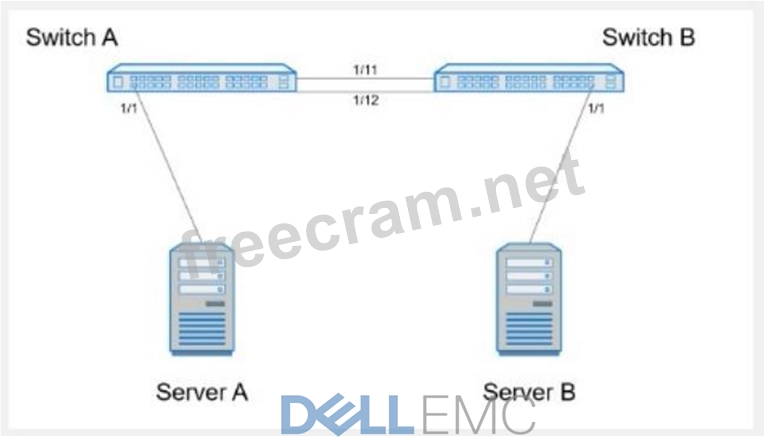

Here are the steps to configure the required port channel and VLAN settings on Switch A:
* Enter Configuration Mode:
SwitchA# configure terminal
* Create Port Channel 10:
SwitchA(config)# interface port-channel 10
SwitchA(config-if-po10)# switchport mode trunk
SwitchA(config-if-po10)# switchport trunk native vlan 1
SwitchA(config-if-po10)# switchport trunk allowed vlan 1,10
* Assign Interfaces Eth 1/11 and Eth 1/12 to Port Channel 10:
SwitchA(config)# interface ethernet 1/11
SwitchA(config-if-eth1/11)# channel-group 10 mode active
SwitchA(config-if-eth1/11)# exit
SwitchA(config)# interface ethernet 1/12
SwitchA(config-if-eth1/12)# channel-group 10 mode active
SwitchA(config-if-eth1/12)# exit
* Configure Interface Eth 1/1 for Server Connection:
SwitchA(config)# interface ethernet 1/1
SwitchA(config-if-eth1/1)# switchport mode trunk
SwitchA(config-if-eth1/1)# switchport trunk native vlan 1
SwitchA(config-if-eth1/1)# switchport trunk allowed vlan 1,10
SwitchA(config-if-eth1/1)# end
* Save Configuration:
SwitchA# write memory
Comprehensive Detailed Step by Step Explanation with References:
* Enter Configuration Mode:
* Start by entering the global configuration mode to make changes to the switch configuration.
* Create Port Channel 10:
* Enter the port channel interface configuration mode using interface port-channel 10.
* Set the port channel to trunk mode with switchport mode trunk.
* Specify VLAN 1 as the native VLAN (untagged) using switchport trunk native vlan 1.
* Allow VLANs 1 and 10 on the trunk with switchport trunk allowed vlan 1,10.
* Assign Interfaces Eth 1/11 and Eth 1/12 to Port Channel 10:
* Enter interface configuration mode for ethernet 1/11 and ethernet 1/12.
* Assign each interface to port channel 10 using the channel-group 10 mode active command.
* Exit the interface configuration mode.
* Configure Interface Eth 1/1 for Server Connection:
* Enter interface configuration mode for ethernet 1/1.
* Set the interface to trunk mode with switchport mode trunk.
* Specify VLAN 1 as the native VLAN using switchport trunk native vlan 1.
* Allow VLANs 1 and 10 on the trunk with switchport trunk allowed vlan 1,10.
* Exit the configuration mode.
* Save Configuration:
* Ensure the configuration is saved so it persists after a reboot using the write memory command.
References:
* Dell Technologies Networking - SONiC
* Dell Enterprise SONiC Deployment Guide
These steps provide a comprehensive guide to configure a port channel and VLAN settings on Switch A to meet the specified requirements for server and trunk connections.
