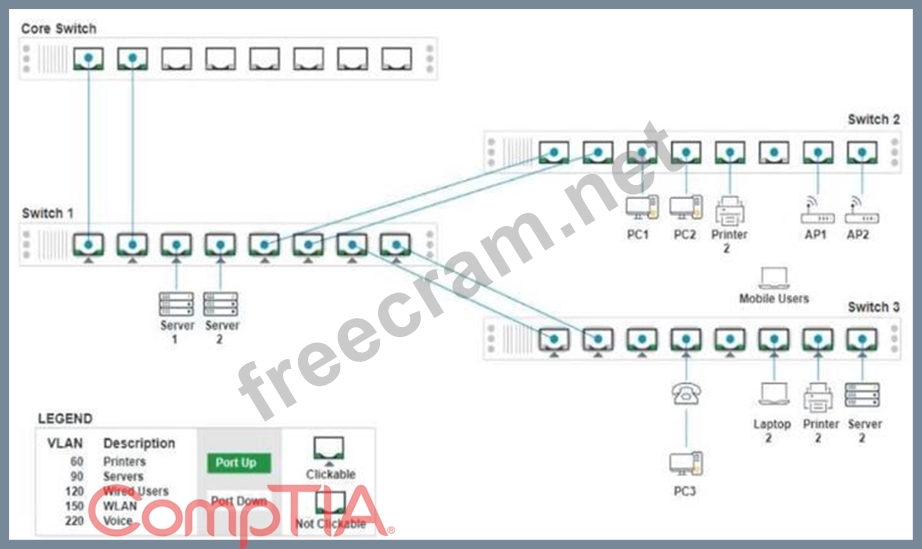

To reconfigure the switch, the technician needs to click on the appropriate port(s) on Switch 1 and Switch 3. The technician should ensure that each device only has access to its correctly associated network. The technician should also disable all unused switch ports. Finally, the technician should require fault-tolerant connections between the switches. If at any time the technician wants to bring back the initial state of the simulation, they can click on the Reset All button.
Tagged = Switch to Switch connections.
Untagged = Devices(WLAN, Servers, Printers, VoIP)
Port Enabled = if there is a device connected
Port Disabled = if there is nothing connection on the port.

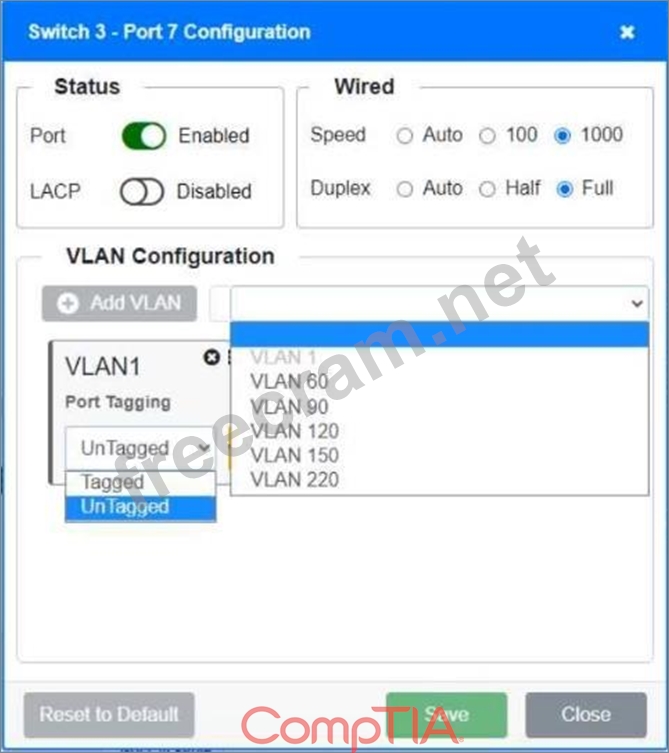

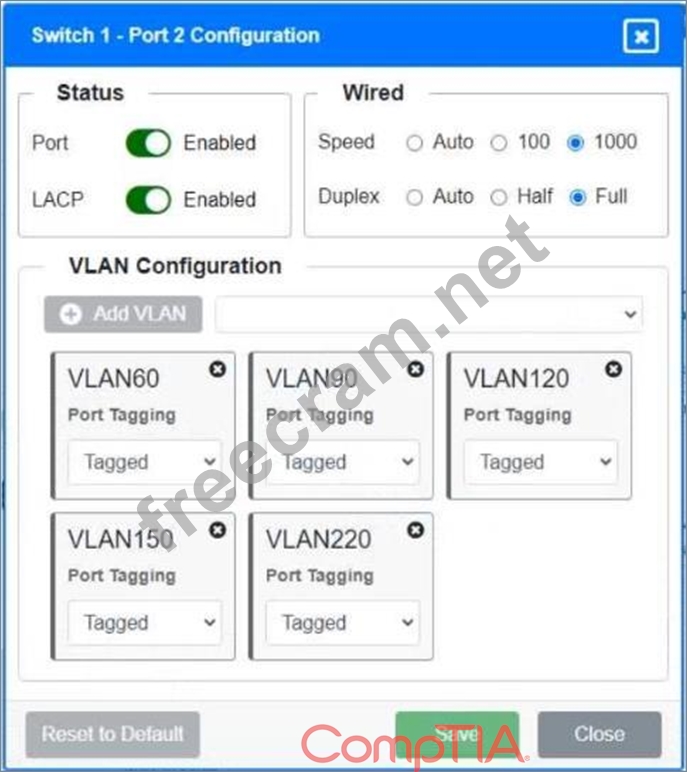

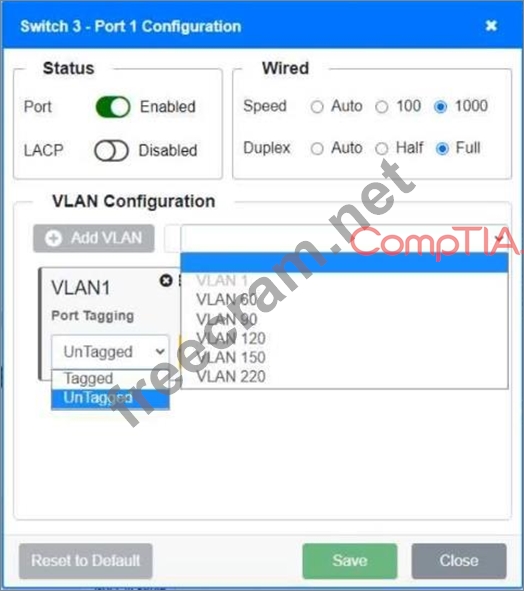

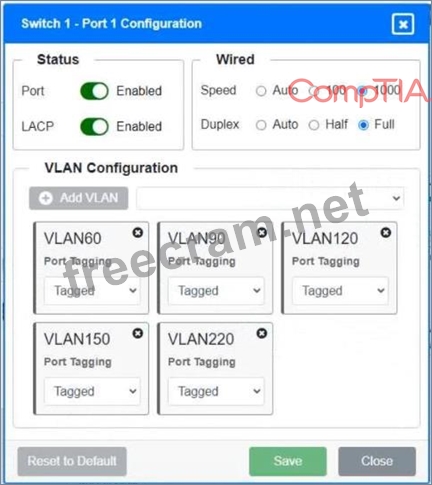

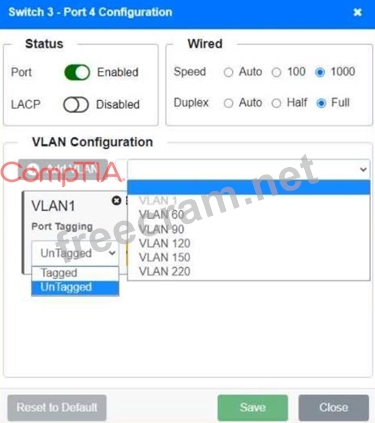

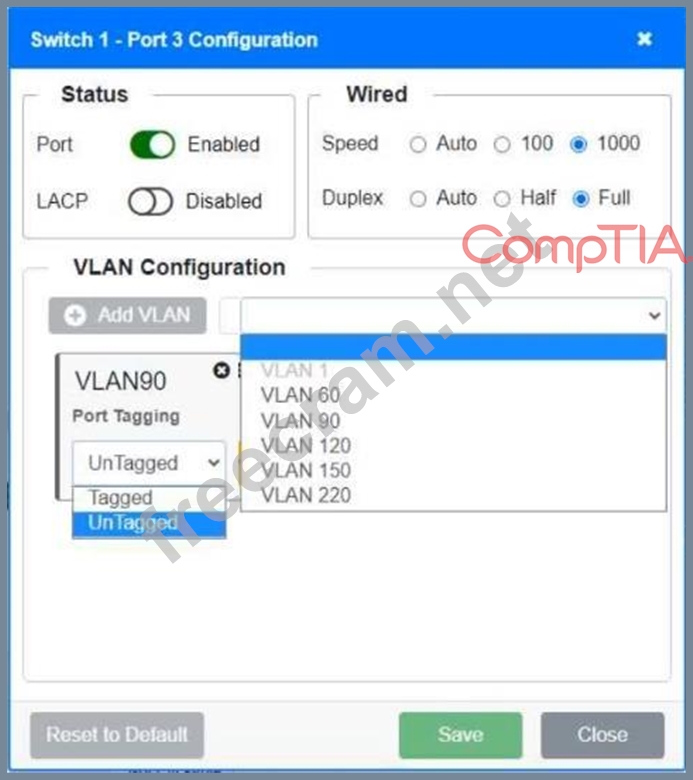

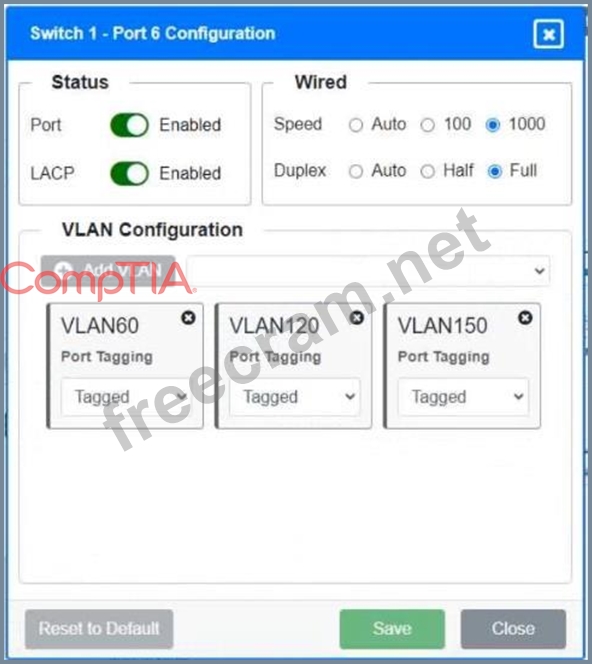

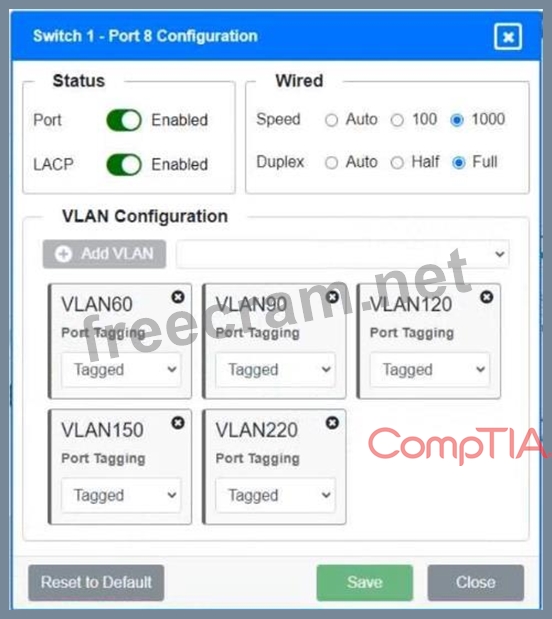

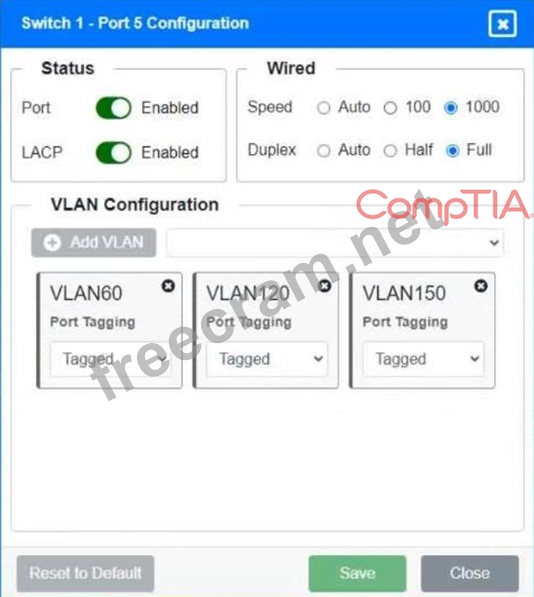

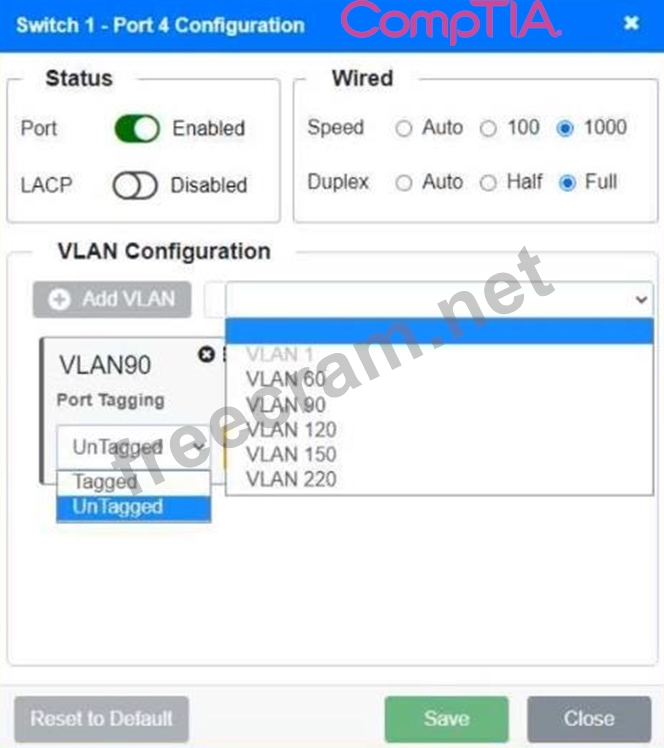

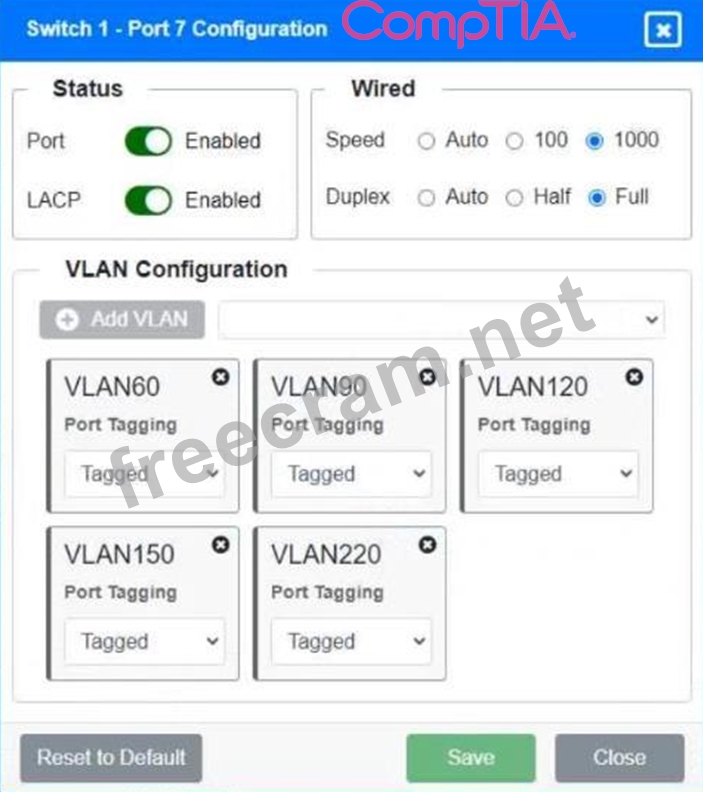

Switch 1-Ports 1 & 2 >Port Enabled >LACP Enabled >VLAN60/90/120/150/220 Tagged Switch 1-Ports 3 & 4 >Port Enabled >LACP Disabled >VLAN90 Untagged Switch 1-Ports 5 & 6 >Port Enabled >LACP Enabled >VLAN60/120/150 Tagged Switch 1-Ports 7 & 8 >Port Enabled >LACP Enabled >VLAN60/90/120/220 Tagged Switch 3-Ports 1 & 2 >Port Enabled >LACP Enabled >VLAN60/90/120/220 Tagged Switch 3-Ports 3 & 5 >Port Disabled Switch 3-Port 4 >Port Enabled >LACP Disabled >VLAN120/220 Untagged Switch 3-Port 6 >Port Enabled >LACP Disabled >VLAN120 Untagged Switch 3-Port 7 >Port Enabled >LACP Disabled >VLAN60 Untagged Switch 3-Port 8 >Port Enabled >LACP Disabled >VLAN90 Untagged
