Comprehensive and Detailed In-Depth Explanation:
TheISO/IEC 42010 standarddefinesconcepts and relationshipsfor modelingArchitecture Descriptions.
This standard structuresarchitecture views, models, and viewpoints.

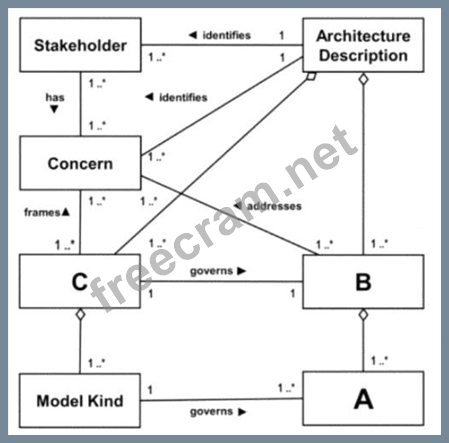

Understanding the Diagram:
* StakeholderidentifiesConcernsabout the architecture.
* Concernsare addressed byB, which in turn governsA.
* Model KindgovernsA, implying thatA is an Architecture Model.
* Architecture Viewpointsframe concerns but are not depicted as governingA, indicating thatB represents an Architecture Viewrather than a Viewpoint.
This aligns withISO/IEC 42010, which states:
* AnArchitecture View(B) addresses stakeholder concerns.
* AnArchitecture Model(A) represents an abstraction of the architecture and is governed byModel Kinds.
Analysis of Answer Choices:
#A. A = Architecture, B = Architecture Viewpoint##Incorrect
* Architectureis too broad; the diagram specifically deals withmodels and views, not the entire architecture.
* Viewpointsgovern concerns but do not directly govern models as shown in the diagram.
#B. A = Viewpoint Library, B = Architecture Rationale##Incorrect
* A is governed by Model Kind, which means it representsan actual model, not a library of viewpoints
.
* B is linked to concerns and architecture descriptions, which matches anArchitecture View, not a rationale.
#C. A = Architecture Model, B = Architecture View##Correct Answer
* ISO/IEC 42010 states that an Architecture View consists of one or more Architecture Models, fitting this diagram.
* Thegoverning relationship from Model Kind to AconfirmsA is an Architecture Model.
* B is addressed by concerns, aligning with how Views address stakeholder concerns in the standard
.
#D. A = Capability, B = Value Stream##Incorrect
* Capabilities and Value Streams belong to Business Architecture, not Architecture Descriptionsin ISO/IEC 42010.
* The diagram followsISO/IEC 42010terminology, making this answer irrelevant.
#C. A = Architecture Model, B = Architecture View.
References:
* ISO/IEC 42010 Standard: Concepts of Architecture Description, Architecture Views, and Models.
* ArchiMate 3.2 Specification: Sections on Architectural Viewpoints and Models.
