Question 7/41

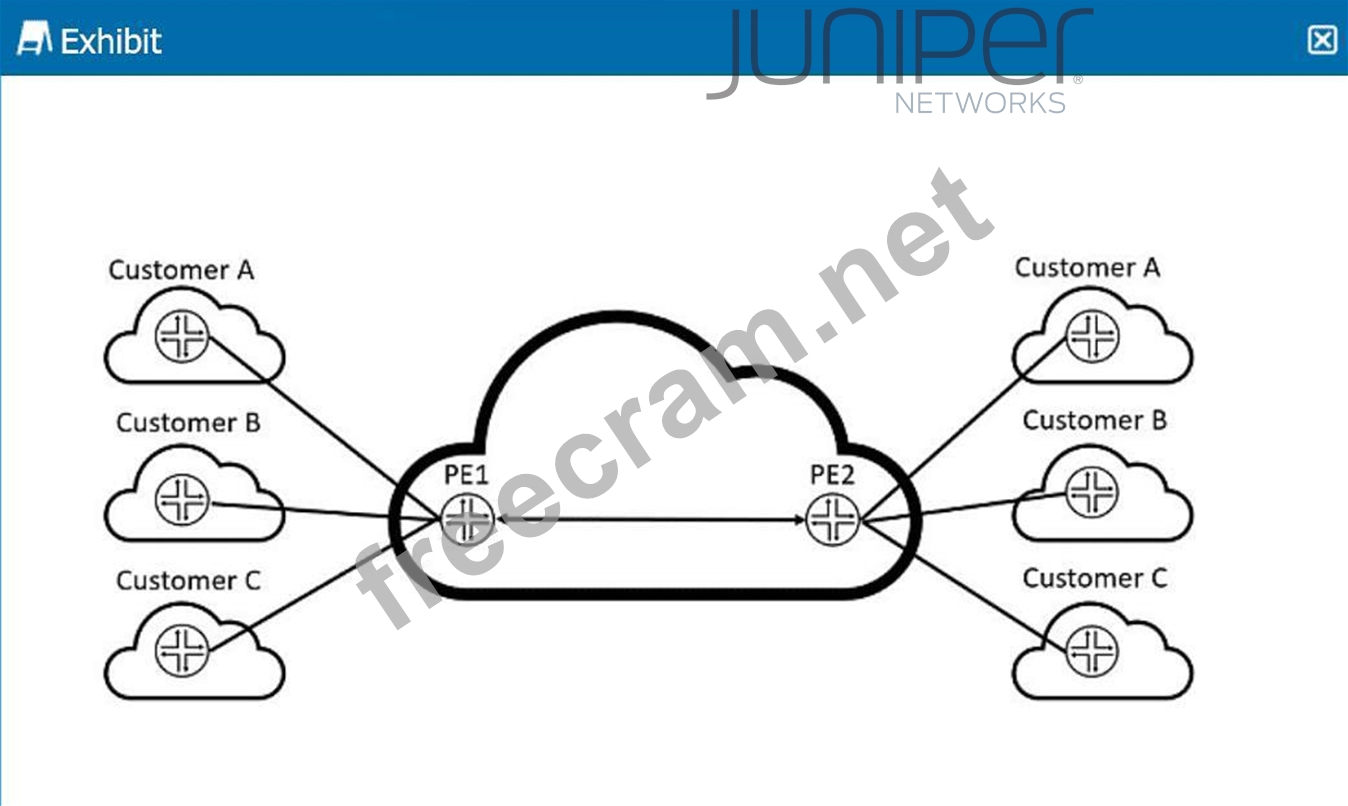

Click the Exhibit button.
After adding Customer C to your Layer 3 VPN, you must ensure that PE2 is receiving VPN routes for all customers attached to PE1, as shown in the exhibit.
Which operational command displays this information?
Correct Answer: B
Understanding the Exhibit and the Problem Statement
* The diagram shows a Layer 3 VPN (L3VPN) setup where multiple customers (Customer A, B, and C ) are connected across a service provider network using PE (Provider Edge) routers.
* PE1 and PE2 exchange VPN routes for all customers using BGP/MPLS Layer 3 VPN (L3VPN) routing.
* The question asks how to verify if PE2 is receiving VPN routes for Customer C.
Evaluating the Answer Choices
# B. show route table bgp.l3vpn.0 (Correct Answer)
* Why?
* This command shows all VPN routes stored in the BGP Layer 3 VPN table (bgp.l3vpn.0).
* Since PE routers exchange VPN routes using MP-BGP, this table contains the VPN-IPv4 or VPN-IPv6 routes for all customers.
* If PE2 is receiving routes from PE1 for Customer C, they will appear in bgp.l3vpn.0.
# A. show route table inet.0 (Incorrect)
* Why?
* The inet.0 table contains global unicast routes for the service provider's network.
* VPN routes do not appear here because they are stored in VRF-specific tables.
* This command won't help verify VPN route exchange between PE1 and PE2.
# C. show route table customer-c.inet.0 (Incorrect)
* Why?
* The table customer-c.inet.0 represents the VRF routing table for Customer C on the local PE.
* It only shows locally installed routes for Customer C but does not confirm if PE2 is receiving routes from PE1.
* This command is useful to check local VPN routing but not BGP route propagation.
# D. show route summary (Incorrect)
* Why?
* This command only provides a summary of route counts per protocol (BGP, OSPF, etc.).
* It does not display specific VPN routes.
* It is useful for general troubleshooting but doesn't confirm VPN route receipt.
# show route table bgp.l3vpn.0 (Option B)
Official Juniper Documentation Reference
* Junos MPLS VPNs Configuration Guide# Juniper Documentation
"The show route table bgp.l3vpn.0 command displays all VPN-IPv4 routes learned via MP-BGP for Layer 3 VPNs."
* The diagram shows a Layer 3 VPN (L3VPN) setup where multiple customers (Customer A, B, and C ) are connected across a service provider network using PE (Provider Edge) routers.
* PE1 and PE2 exchange VPN routes for all customers using BGP/MPLS Layer 3 VPN (L3VPN) routing.
* The question asks how to verify if PE2 is receiving VPN routes for Customer C.
Evaluating the Answer Choices
# B. show route table bgp.l3vpn.0 (Correct Answer)
* Why?
* This command shows all VPN routes stored in the BGP Layer 3 VPN table (bgp.l3vpn.0).
* Since PE routers exchange VPN routes using MP-BGP, this table contains the VPN-IPv4 or VPN-IPv6 routes for all customers.
* If PE2 is receiving routes from PE1 for Customer C, they will appear in bgp.l3vpn.0.
# A. show route table inet.0 (Incorrect)
* Why?
* The inet.0 table contains global unicast routes for the service provider's network.
* VPN routes do not appear here because they are stored in VRF-specific tables.
* This command won't help verify VPN route exchange between PE1 and PE2.
# C. show route table customer-c.inet.0 (Incorrect)
* Why?
* The table customer-c.inet.0 represents the VRF routing table for Customer C on the local PE.
* It only shows locally installed routes for Customer C but does not confirm if PE2 is receiving routes from PE1.
* This command is useful to check local VPN routing but not BGP route propagation.
# D. show route summary (Incorrect)
* Why?
* This command only provides a summary of route counts per protocol (BGP, OSPF, etc.).
* It does not display specific VPN routes.
* It is useful for general troubleshooting but doesn't confirm VPN route receipt.
# show route table bgp.l3vpn.0 (Option B)
Official Juniper Documentation Reference
* Junos MPLS VPNs Configuration Guide# Juniper Documentation
"The show route table bgp.l3vpn.0 command displays all VPN-IPv4 routes learned via MP-BGP for Layer 3 VPNs."
