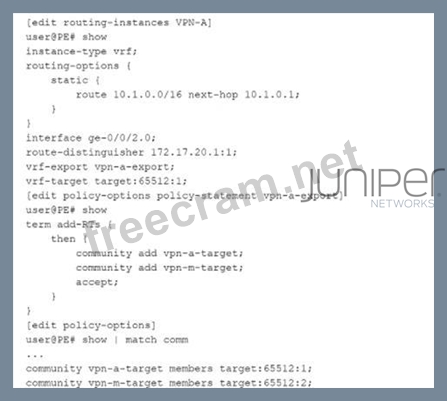

The exhibit shows the configuration of a VRF (Virtual Routing and Forwarding) instance on a Juniper PE router. Let's break down the key components:
* VRF Configuration (VPN-A)
* The instance type is VRF, meaning this is an L3VPN (Layer 3 VPN).
* The routing instance contains a static route (10.1.0.0/16 next-hop 10.1.0.1).
* The interface ge-0/0/2.0 is assigned to the VRF.
* Route Distinguisher (RD): 172.17.20.1:1
* VRF-Export Policy: vpn-a-export
* VRF-Target: target:65512:1 (This defines which routes will be imported into the VRF).
* VRF Export Policy (vpn-a-export)
* The vpn-a-export policy adds two BGP communities (route targets) to exported VPN routes:
community add vpn-a-target;
community add vpn-m-target;
accept;
* The vpn-a-target community corresponds to target:65512:1.
* The vpn-m-target community corresponds to target:65512:2.
* Policy-Options (Community Definitions)
community vpn-a-target members target:65512:1;
community vpn-m-target members target:65512:2;
* This confirms that routes exported from this VRF will have BOTH target:65512:1 and target:
65512:2.
Evaluating the Answer Choices
# Option A: "VPN routes are exported with the target:65512:1 and target:65512:2 route targets."
* The vpn-a-export policy explicitly adds both vpn-a-target (65512:1) and vpn-m-target (65512:2) to exported routes.
* This is correct. #
# Option B: "You cannot use the vrf-target and vrf-export statements in the same VRF."
* This is incorrect.
* Juniper allows the use of both vrf-target and vrf-export in the same VRF:
* vrf-target is used for importing routes.
* vrf-export defines export policies (which can add additional route targets).
* This is incorrect. #
# Option C: "VPN routes with the target:65512:1 and target:65512:2 route targets are imported."
* The vrf-target target:65512:1; statement only controls importing routes.
* The import policy does not include target:65512:2, so routes tagged with target:65512:2 alone would not be imported into this VRF.
* This is incorrect. #
# Option D: "VPN routes are exported with only the target:65512:1 route target."
* The export policy (vpn-a-export) clearly adds both 65512:1 and 65512:2.
* This is incorrect. #
# A. VPN routes are exported with the target:65512:1 and target:65512:2 route targets.
Verification from Juniper Documentation
* Juniper MPLS L3VPN Configuration Guide confirms that vrf-target is used for importing, while vrf-export can be used for exporting multiple route targets.
* Juniper Routing Policy Documentation states that export policies can add multiple BGP communities (route targets).
* RFC 4364 (BGP/MPLS IP VPNs) defines the use of route targets for VPN route control.
