SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology tab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab closes and cannot be reopened.

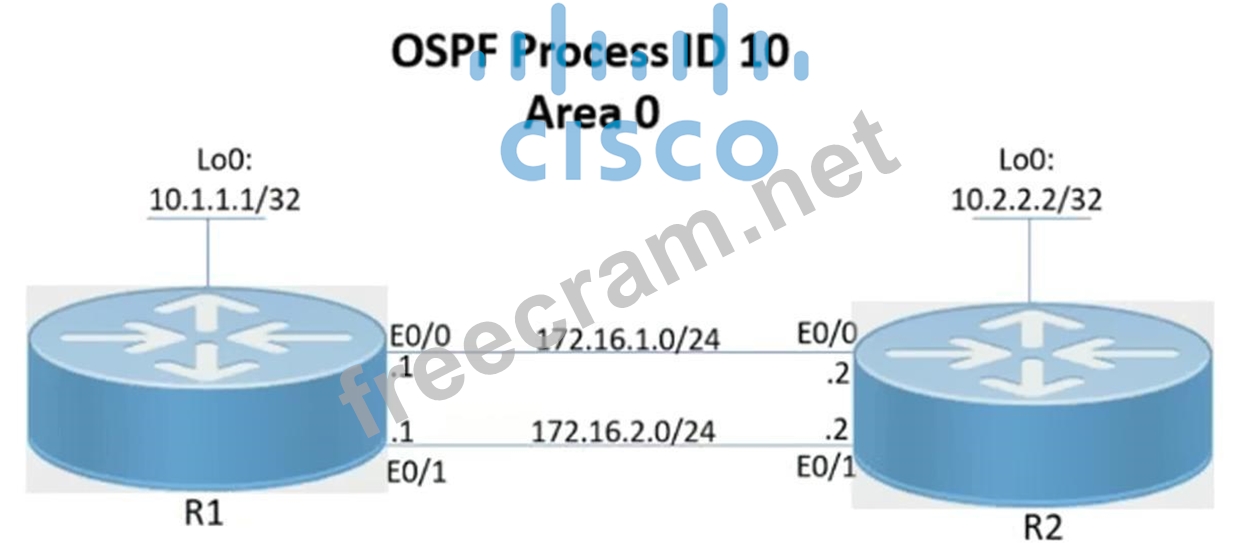

Topology

Tasks

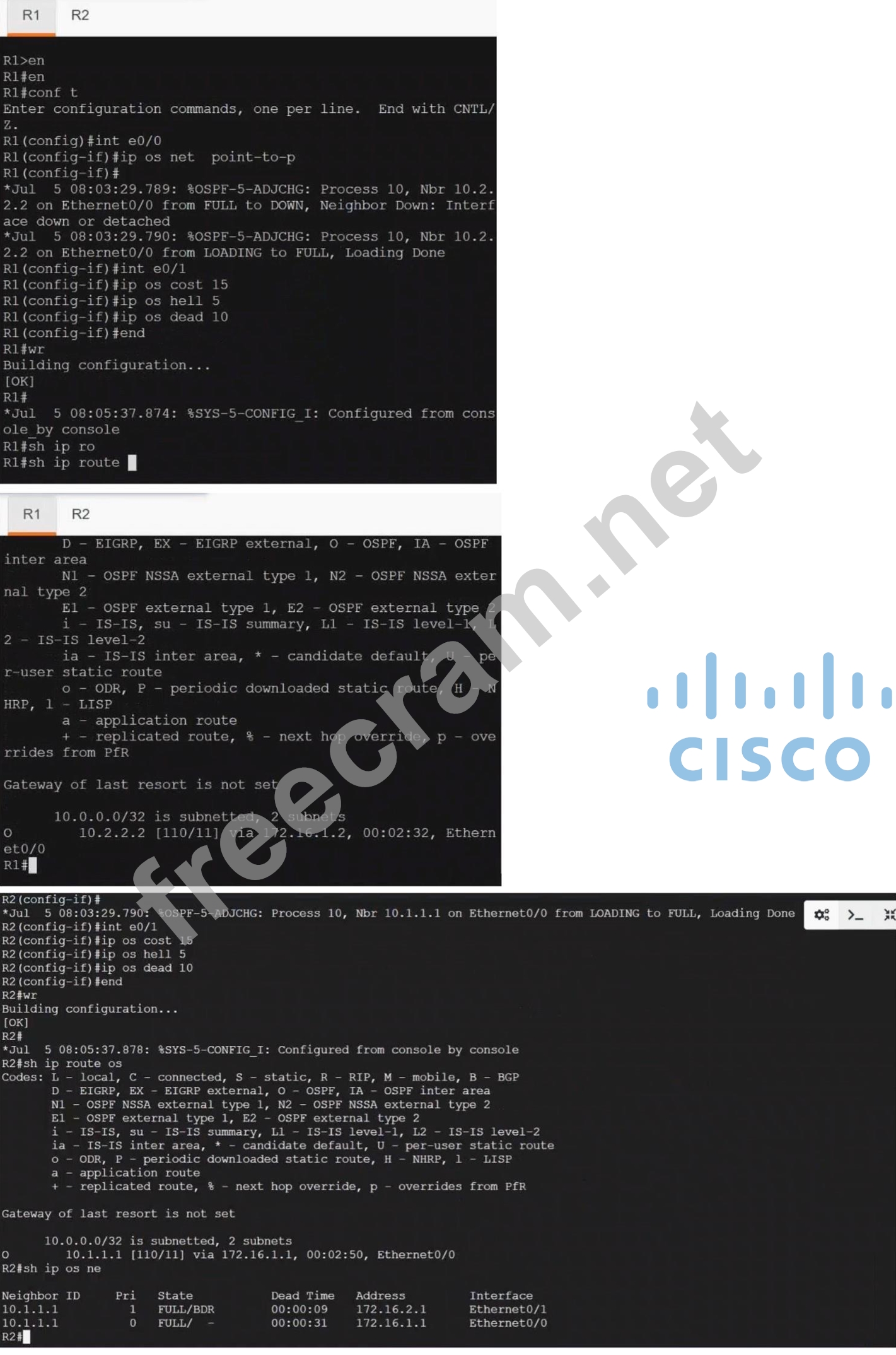

Troubleshoot and configure OSPF according to the topology to achieve these goals:
1. R1 and R2 must not have OSPF BR/DR election over their E0/0 interfaces and must not advertise the OSPF host route for the OSPF connected neighbors.
2. E0/0 interfaces on R1 and R2 to be preferred over E0/1 interfaces for OSPF traffic. Only the numerical value of 15 is allowed.
3. Set the OSPF hello interval to 5 and the OSPF dead interval to 10 between R1 and R2 on interface E0/1.
