Question 82/231

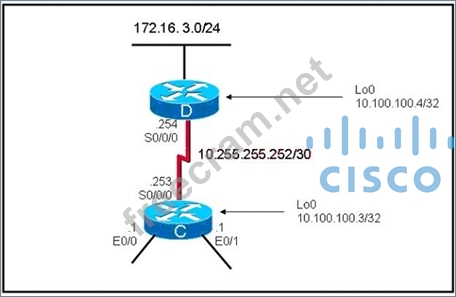

Refer to the exhibit. Two routers are connected by Frame Relay and are running OSPF between them.
Each router has been configured with the appropriate network statements under router ospf 1, but the routers are not forming an adjacency. Which of the following three commands could be configured on each router to correct this problem? (Choose three.)

A. RouterC(config-if )#ip ospf network broadcast
RouterD(config-if )#ip ospf network broadcast

B. RouterC(config-if)#ip ospf network point-to-point
RouterD(config-if)#ip ospf network point-to-point

C. RouterC(config-router)#neighbor 10.100.100.4
RouterD(config-router)#neighbor 10.100.100.3

D. RouterC(config-router)#neighbor 10.255.255.254
RouterD(config-router)#neighbor 10.255.255.253
