Choose the correct answer.
To "show what you know" about SysML a Systems Engineer (SE) must take a total of four examinations in order Model User (MU). Model Bulkier Fundamental (MBF), Model Builder intermediate (MBI> and Model Builder Advanced (MBA). The SE must also study before taking each exam.

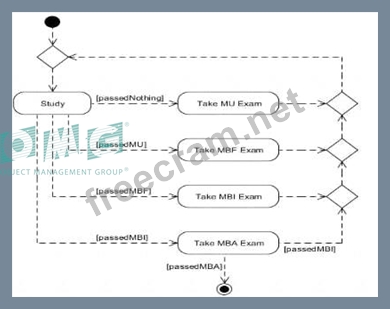

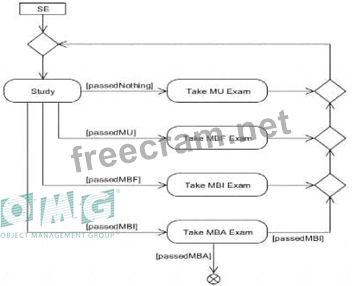

Which activity diagram fragment correctly uses object state constraints to document the process of studying and taking the exams, ensuring that the exams are taken in order of increasing difficulty, and allowing for the possibility that exams may have to be repeated?
To "show what you know" about SysML a Systems Engineer (SE) must take a total of four examinations in order Model User (MU). Model Bulkier Fundamental (MBF), Model Builder intermediate (MBI> and Model Builder Advanced (MBA). The SE must also study before taking each exam.
Which activity diagram fragment correctly uses object state constraints to document the process of studying and taking the exams, ensuring that the exams are taken in order of increasing difficulty, and allowing for the possibility that exams may have to be repeated?
