Question 5/92

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2.

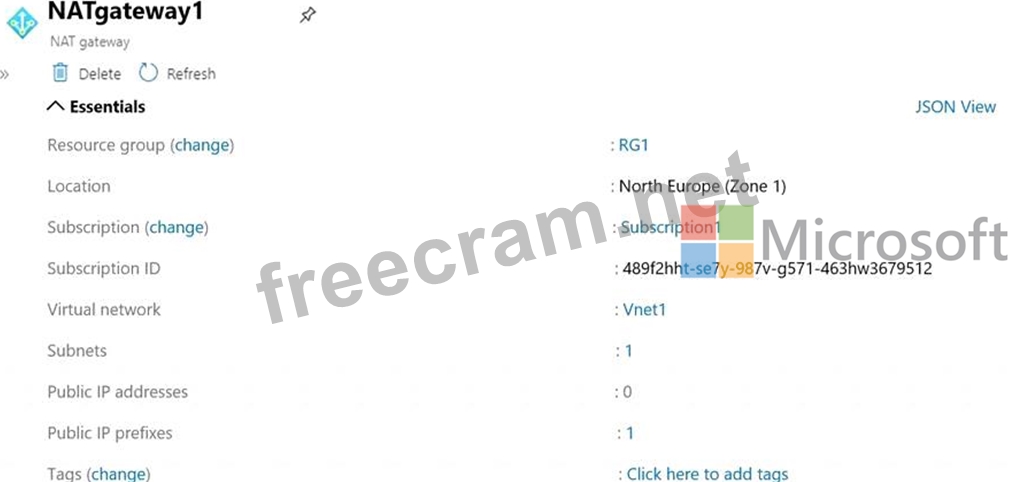

You have the NAT gateway shown in the NATgateway1 exhibit.

You have the virtual machine shown in the VM1 exhibit.

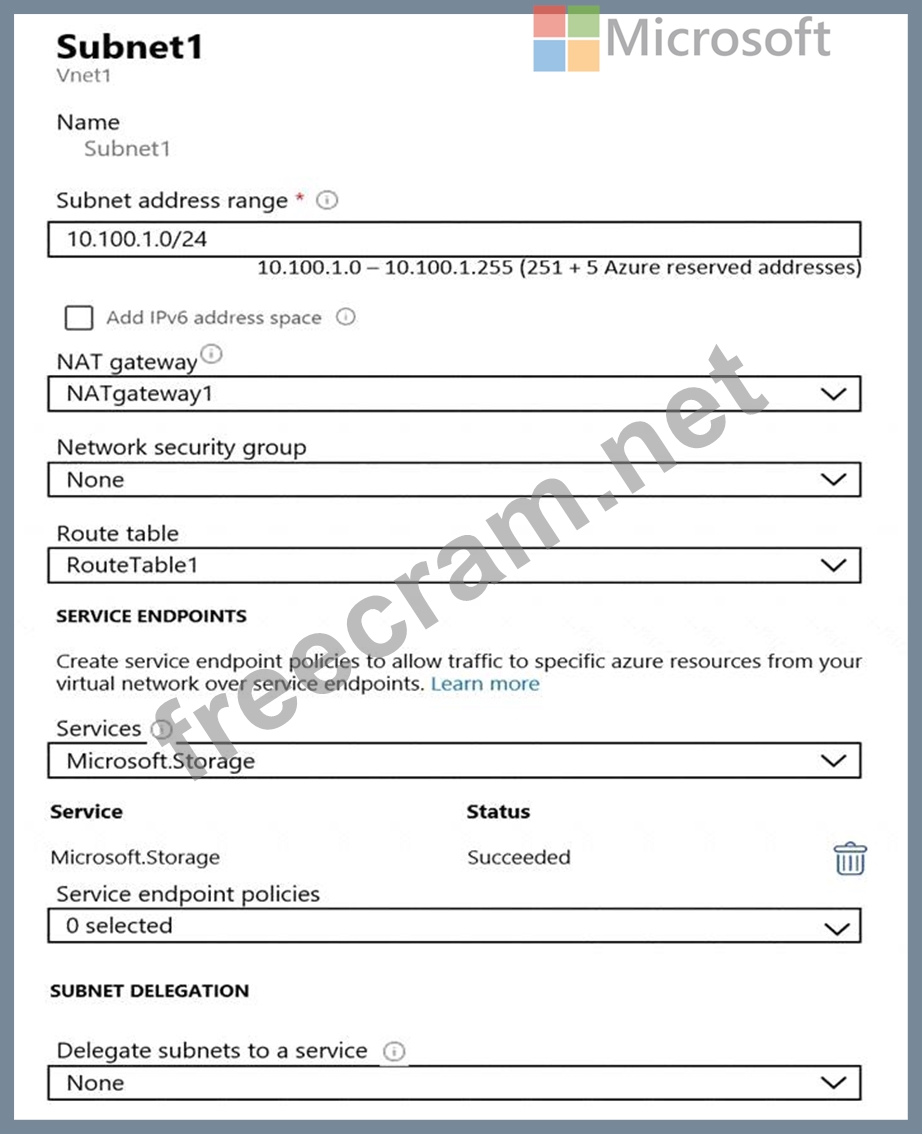

Subnet1 is configured as shown in the Subnet1 exhibit.

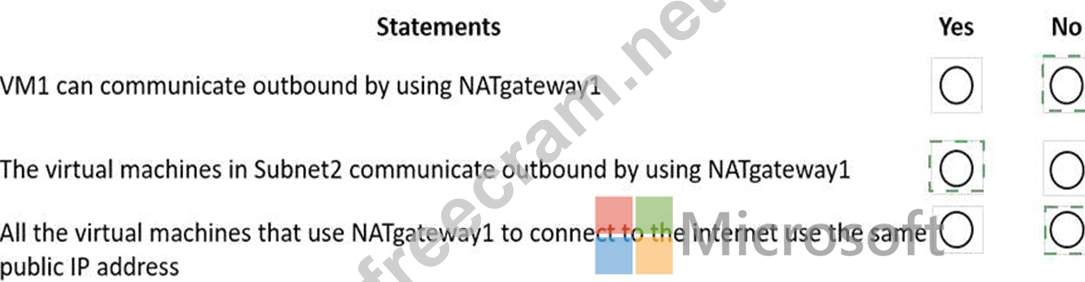

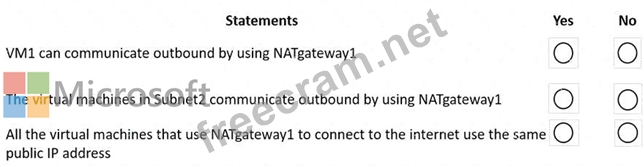

For each of the following statements, select Yes of the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

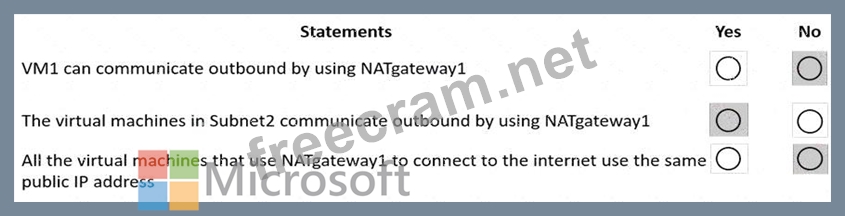

Correct Answer:

Explanation
Graphical user interface, text, application Description automatically generated

Box 1: No
VM1 is in Zone2 whereas the NAT Gateway is in Zone1. The VM would need to be in the same zone as the NAT Gateway to be able to use it. Therefore, VM1 cannot use the NAT gateway.
Box 2: Yes
NATgateway1 is configured in the settings for Subnet2.
Box 3: No
The NAT gateway does not have a single public IP address, it has an IP prefix which means more than one IP address. The VMs the use the NAT Gateway can use different public IP addresses contained within the IP prefix.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/nat-gateway/nat-gateway-resource

Recent Comments (The most recent comments are at the top.)

sam rocks - Apr 02, 2024

Correct Answer: - YNN

1) NAT gateway can provide outbound connectivity for virtual machines from other availability zones different from itself. The virtual machine’s subnet needs to be configured to the NAT gateway resource to provide outbound connectivity. Additionally, multiple subnets can be configured to the same NAT gateway resource.

While virtual machines in subnets from different availability zones can all be configured to a single zonal NAT gateway resource, this configuration doesn't provide the most effective method for ensuring zone-resiliency against zonal outages.

2) Subnet2 is not configured with NatGateway, refer exhibit 1, Nat Gateway is associated with only 1 subet. In exhibit 2 it shows that Subnet 1 is associated with that Nat Gateway.

3) In exhibit 1 it shows that NAT Gateway is configured with Public IP Prefix, and outbound connection can use any Public from that prefix. It is NOT neccessary to use same (one) Public IP.
