Explanation

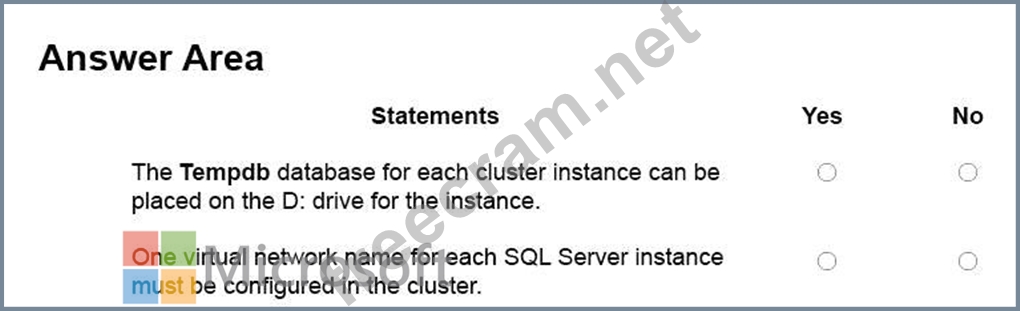

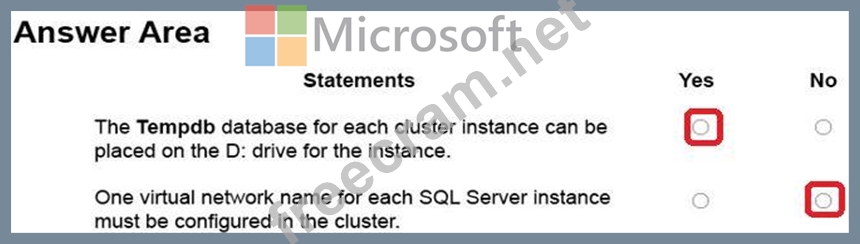

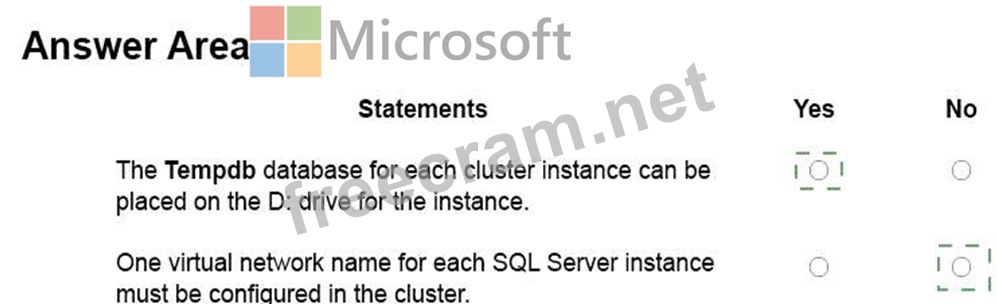

Box 1: Yes
tempdb on local storage. FCIs now support placement of tempdb on local non-shared storage, such as a local solid-state-drive, potentially offloading a significant amount of I/O from a shared SAN.
Prior to SQL Server 2012, FCIs required tempdb to be located on a symmetrical shared storage volume that failed over with other system databases.
Box 2: No
The VNN is set on the group level, not on the instance level.
Database client applications can connect directly to a SQL Server instance network name, or they may connect to a virtual network name (VNN) that is bound to an availability group listener. The VNN abstracts the WSFC cluster and availability group topology, logically redirecting connection requests to the appropriate SQL Server instance and database replica.

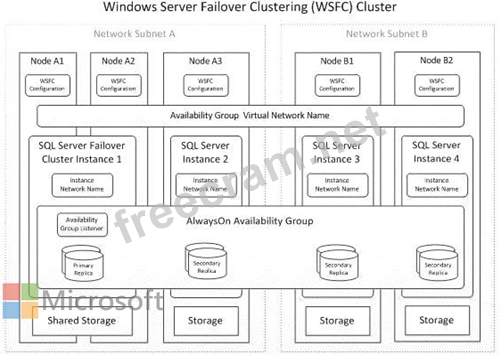

The logical topology of a representative AlwaysOn solution is illustrated in this diagram:

References:
http://download.microsoft.com/download/d/2/0/d20e1c5f-72ea-4505-9f26-fef9550efd44/microsoft%20sql%20se
