Refer to the exhibits.

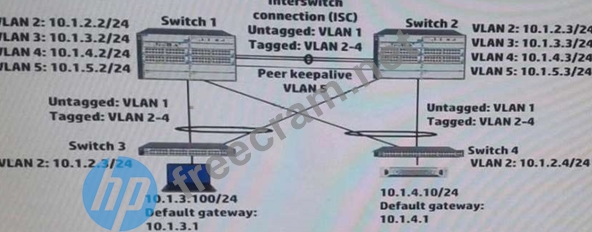

Exhibit 1

Exhibit 2

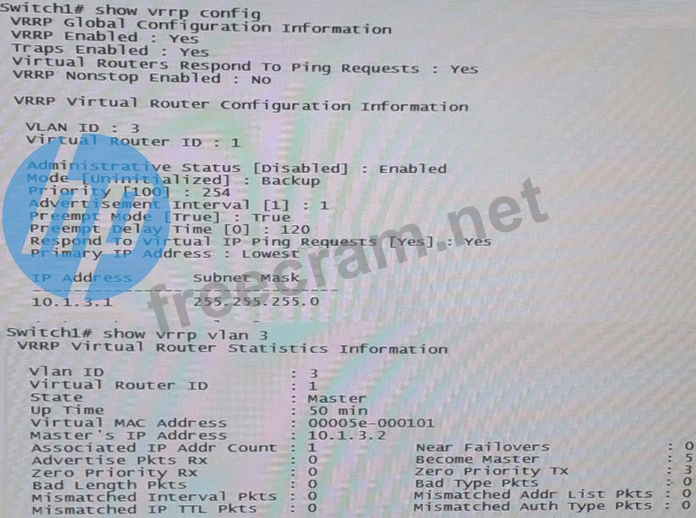

Exhibit 2 shows the Virtual Router Redundancy Protocol (VRRP) configuration and status for VLAN 3 on switch 1 during normal operation, when both Switch 1 and Switch 2 are up. Switch 1 then experiences a power failure. After a few minutes, power is restored, and the switch comes back up.
What happens to VRRP operations in VLAN 3?
