Question 17/140

Please click the exhibit button.

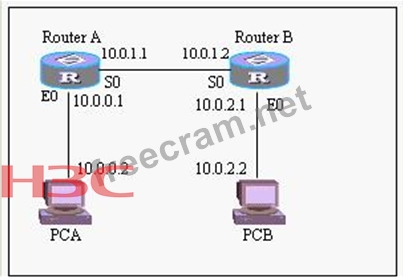

As shown in the following networking figure,
Assume the default gateway configuration of each host is correct.
The specific configuration is as follows:
Now create configuration...
Current configuration
!
version 1.74
firewall enable
sysname RouterA
encrypt-card fast-switch
!
interface Aux0
async mode flow
phy-mru 0
link-protocol ppp
!
interface Ethernet0
ip address 10.0.0.1 255.255.255.0
!
interface Serial0
clock DTECLK1
link-protocol ppp
ip address 10.0.1.1 255.255.255.0
!
interface Serial1
link-protocol ppp
!
quit
rip
network all
!
quit
!
return
Now create configuration...
Current configuration
!
version 1.74
firewall enable
sysname RouterB
!
acl 101 match-order auto
rule normal permit ip source 10.0.2.2 0.0.0.0 destination 10.0.0.2 0.0.0.0 rule normal deny ip source any
!
interface Aux0
async mode flow
phy-mru 0
link-protocol ppp
!
interface Ethernet0
ip address 10.0.2.1 255.255.255.0
!
interface Serial0
link-protocol ppp
ip address 10.0.1.2 255.255.255.0
firewall packet-filter 101 outbound
!
interface Serial1
link-protocol ppp
!
quit
rip
network all
!
quit
!
return
Is the conclusion that PcA can ping PcB successfully true?

A. False

B. True

Correct Answer: A
