Question 21/33

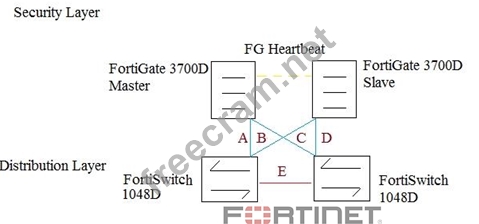

Click the Exhibit button.
The exhibit shows a full-mesh topology between FortiGates and FortiSwitches. To deploy this configuration, two requirements must be met:
-20 Gbps full duplex connectivity is available between each FortiGate and the FortiSwitches
-The FortiGate HA must be in AP mode.

Referring to the exhibit, what are two actions that will fulfill the requirements? (Choose two.)

A. Configure the master FortiGate with one LAG and FortiLink split interface enabled on ports connected to cables A and C and make sure the same ports are used for cables B and D on the slave.

B. Configure both FortiSwitches as peers with ISL over cable E, create one MCLAG on ports connected to cables A and C, and create another MCLAG on ports connected to cables B and D.

C. Configure both FortiSwitches as peers with ICL over cable E, create one MCLAG on ports connected to cables A and C, and create another MCLAG on ports connected to cables B and D.

D. Configure the master FortiGate with one LAG and FortiLink split interface disabled on ports connected to cables A and C and make sure the same ports are used for cables B and D on the slave.

Correct Answer: B,C
