See the solution in Explanation.
Explanation:
To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
* Review Routing Tables:
* Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
* Identify Missing Routes:
* Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
* Add Static Routes:
* If a route is missing, add a static route to the relevant destination network via the correct interface.

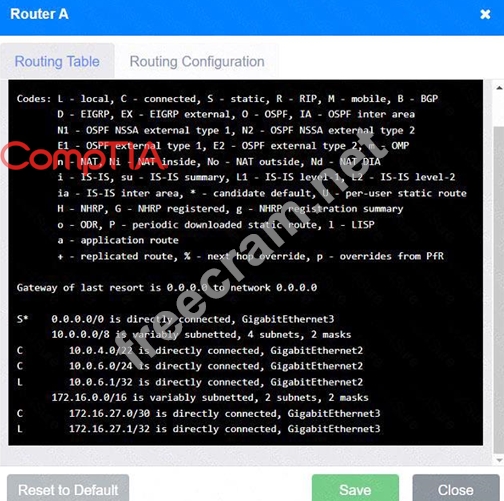

* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3
* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1

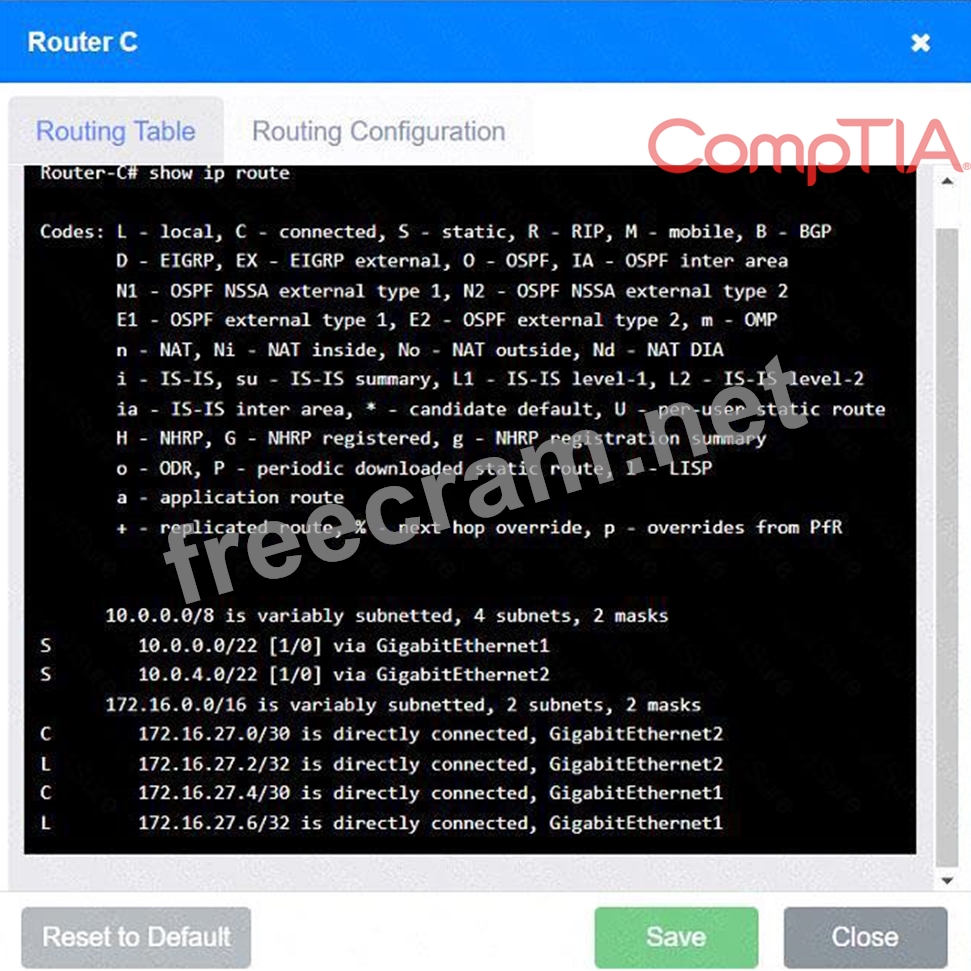

* Routing Table:
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1

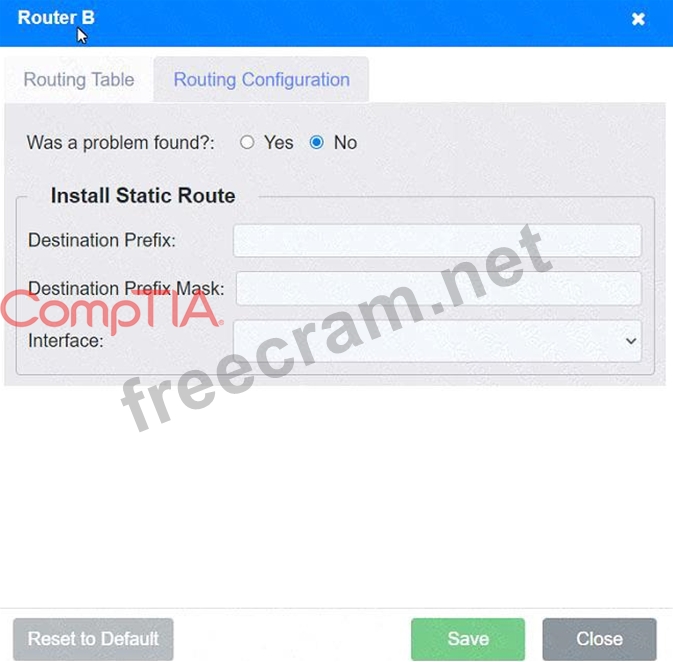

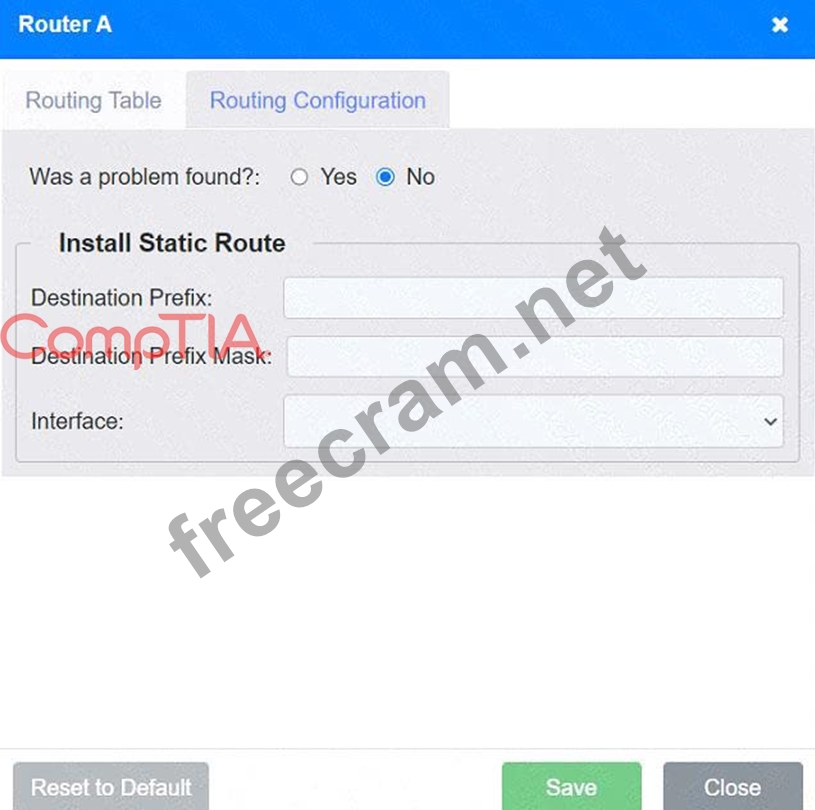

* Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3
* Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
* Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
* Router A:
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
* Router B:
* ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
* Router C:
* ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server
2, resolving the connectivity issue.
