See the solution below in Explanation.
Explanation:
To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
* Identify the correct VLANs for each device and port.
* Enable necessary ports and disable unused ports.
* Configure fault-tolerant connections between the switches.

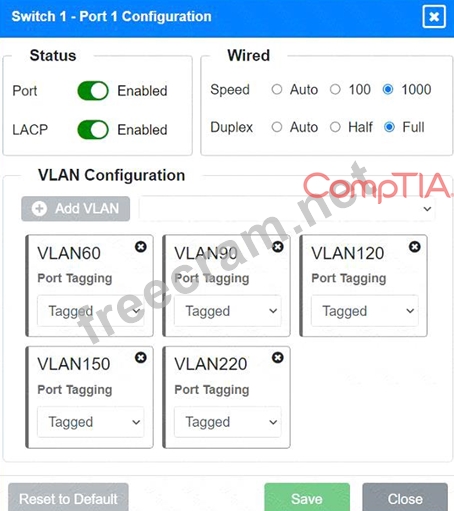

Port 1 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 2 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full

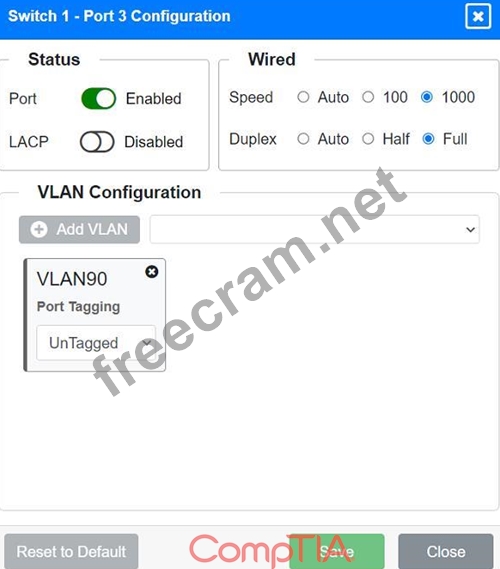

* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 3 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)

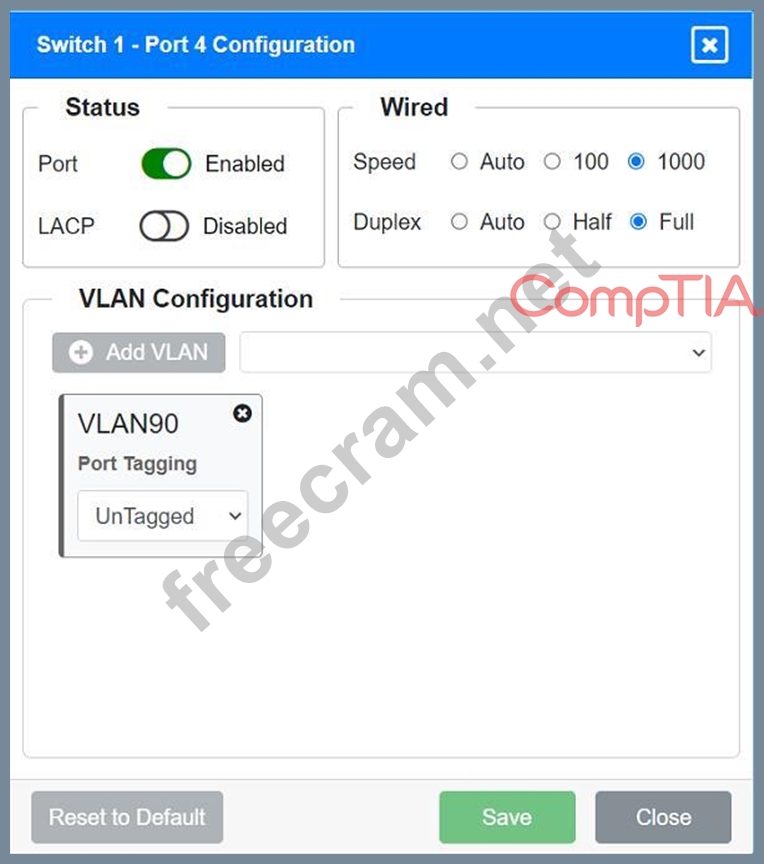

Port 4 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)

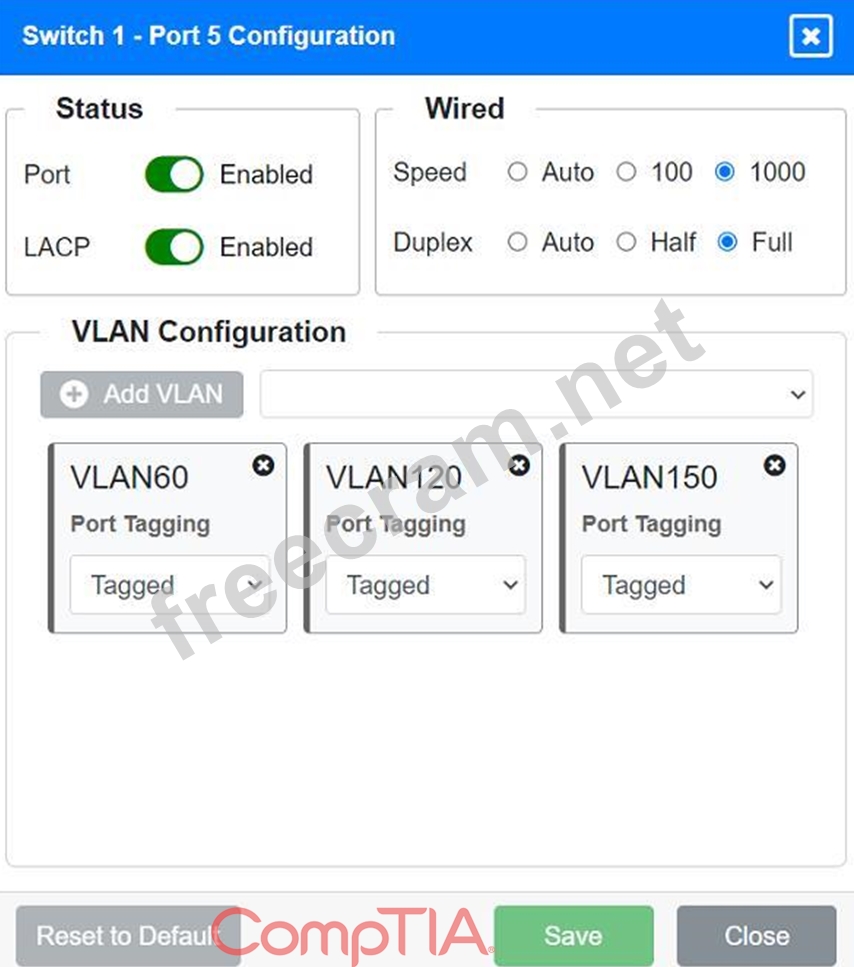

Port 5 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

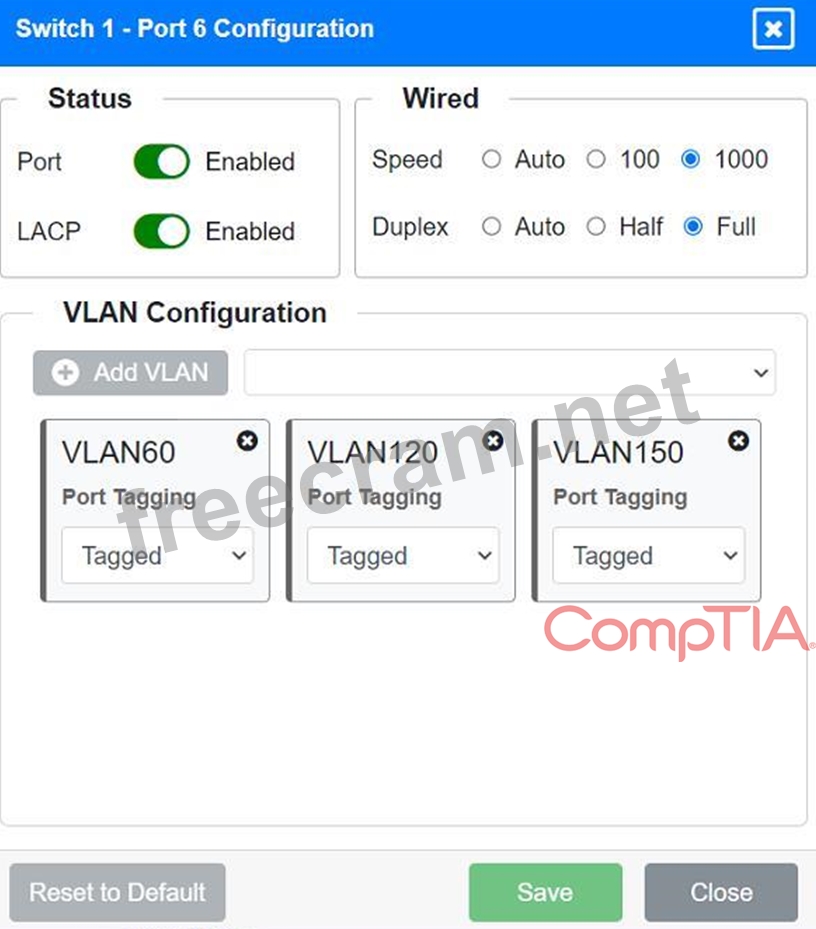

Port 6 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150
Port 7 Configuration (Voice and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

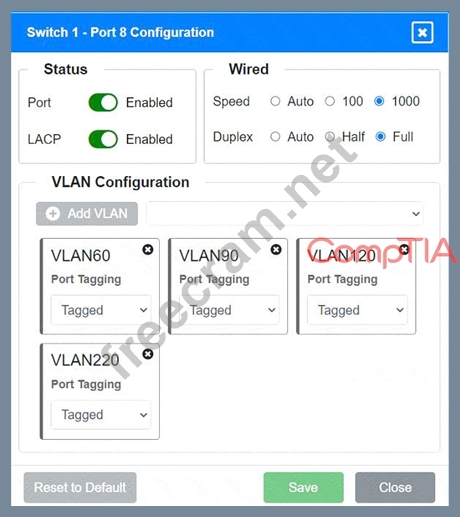

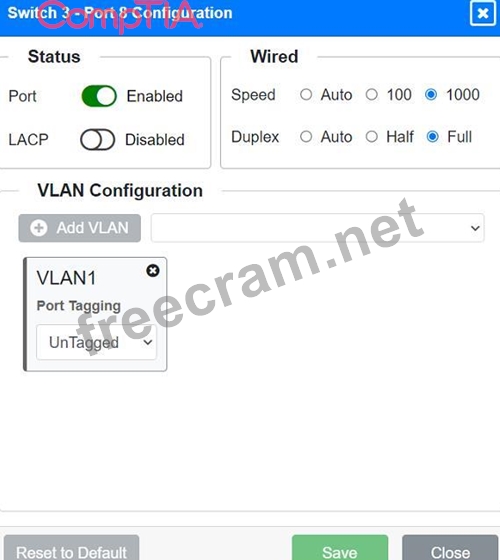

Port 8 Configuration (Voice, Printers, and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220
Port 1 Configuration (Unused)
* Status: Disabled
* LACP: Disabled

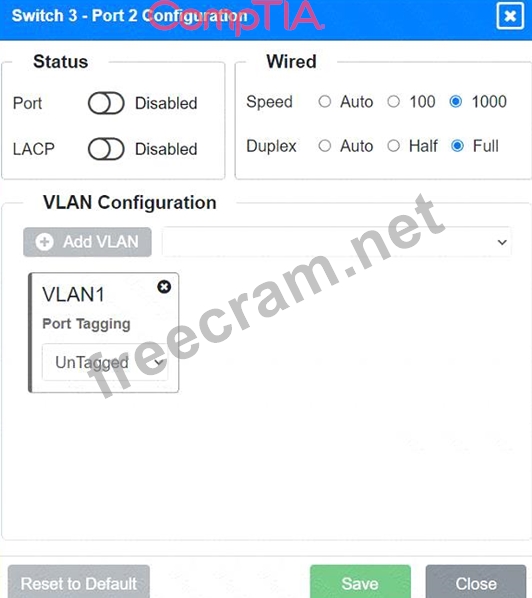

Port 2 Configuration (Unused)
* Status: Disabled
* LACP: Disabled

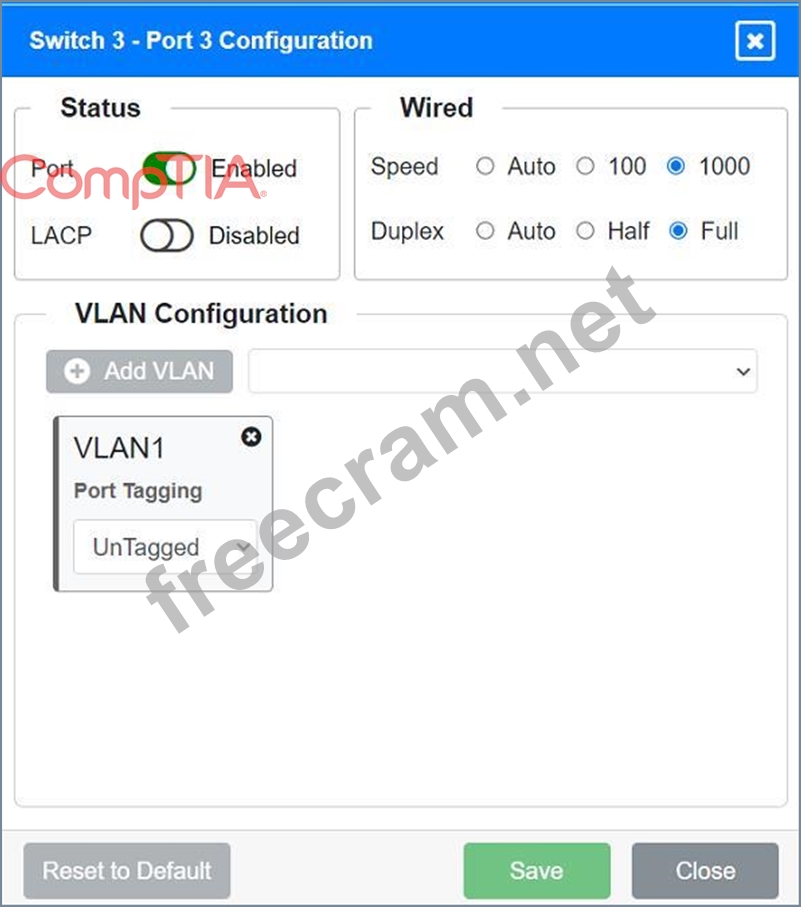

Port 3 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

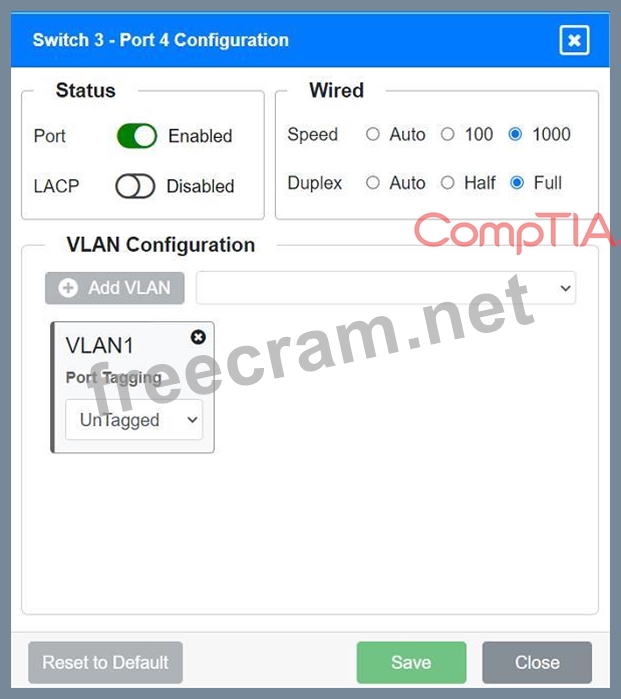

Port 4 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
Port 5 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

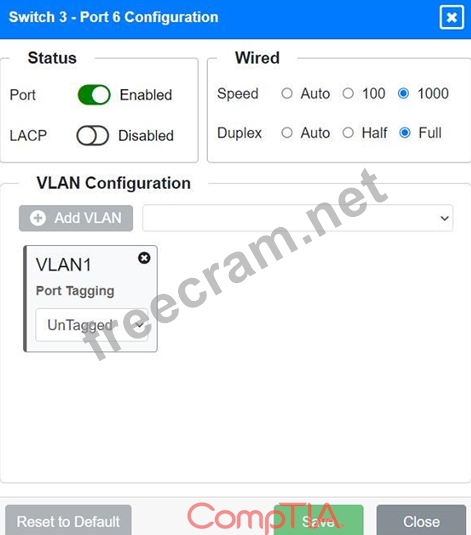

Port 6 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

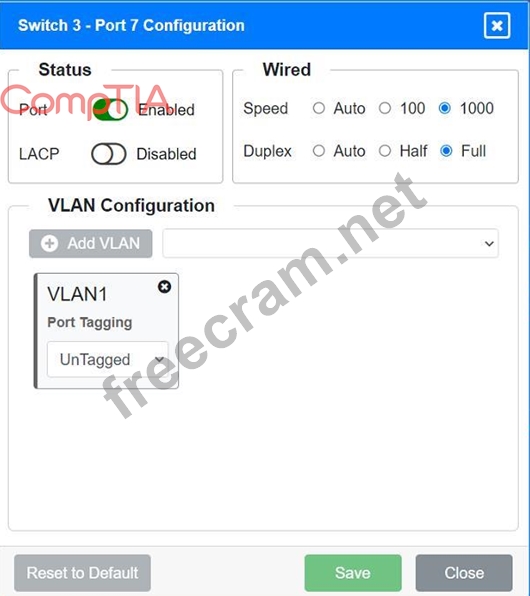

Port 7 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
* Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.
* Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.
* Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.
* Unused ports on Switch 3 are disabled.
* Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
* Core Switch Ports should be configured as needed for uplinks to Switch 1.
* Ensure LACP is enabled for redundancy on trunk ports between switches.
By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.
