Question 71/74

The implementation group has been using the test bed to do an IPv6 'proof-of-concept1. After several changes to the network addressing and routing schemes, a trouble ticket has been opened indicating that the loopback address on R1 (2026::111:1) is not able to ping the loopback address on DSW2 (2026::102:1).
Use the supported commands to isolate the cause of this fault and answer the following question.
On which device is the fault condition located?

A. R1

B. R2

C. R3

D. R4

E. DSW1

F. DSW2

G. ASW1

H. ASW2

Correct Answer: D

Explanation/Reference:
Explanation:

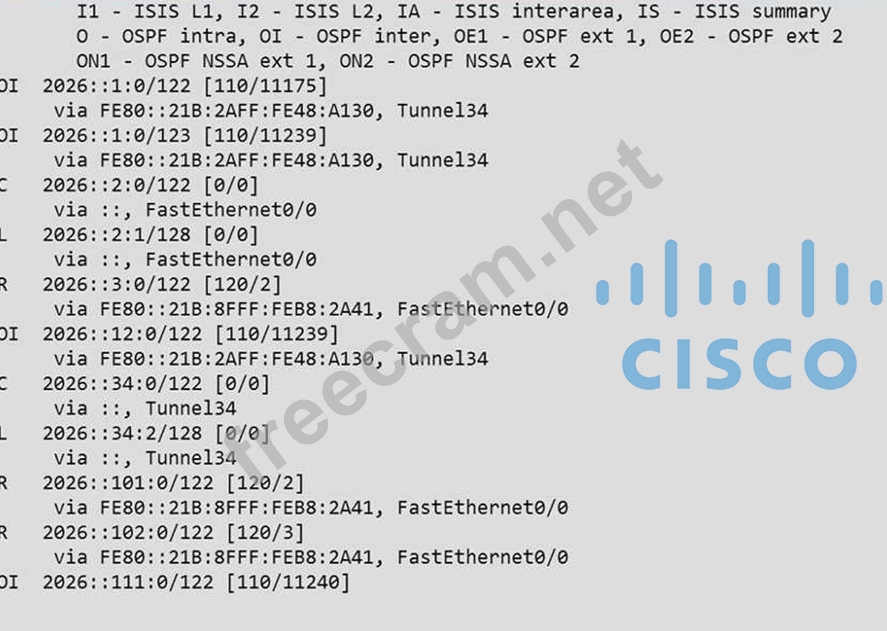

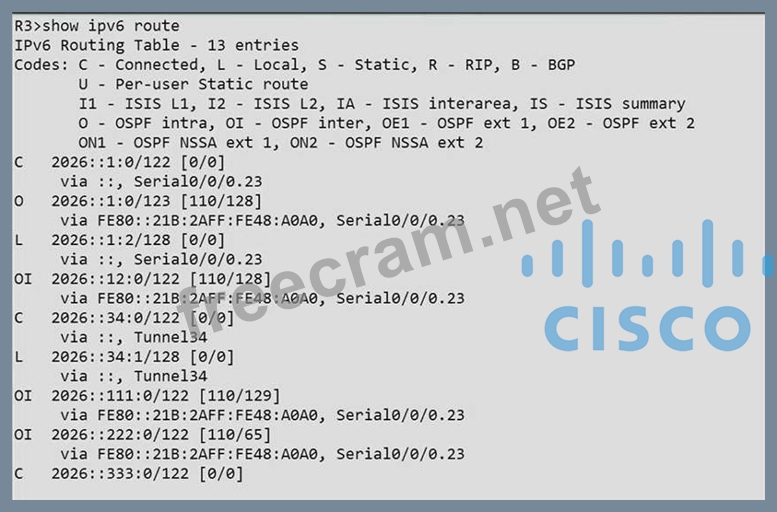

Start to troubleshoot this by pinging the loopback IPv6 address of DSW2 (2026::102:1). This can be pinged from DSW1, and R4, but not R3 or any other devices past that point. If we look at the diagram, we see that R4 is redistributing the OSPF and RIP IPV6 routes. However, looking at the routing table we see that R4 has the 2026::102 network in the routing table known via RIP, but that R3 does not have the route:

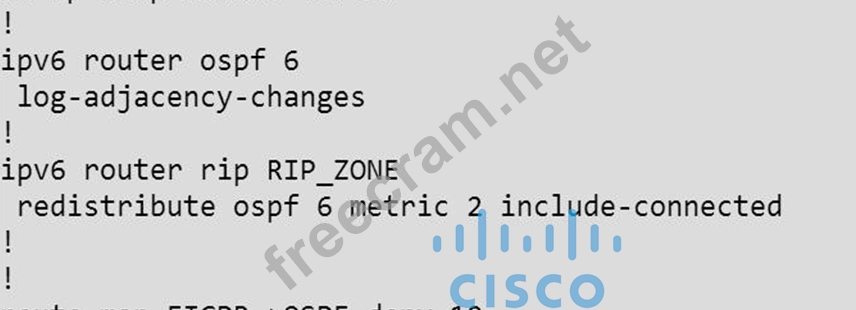

When we look more closely at the configuration of R4, we see that it is redistributing OSPF routes into RIP for IPv6, but the RIP routes are not being redistributed into OSPF. That is why R3 sees R4 as an IPV6 OSPF neighbor, but does not get the 2026::102 network installed.

So, problem is with route redistribution on R4.
