Explanation/Reference:
Explanation:
On R1 under router BGP change neighbor 209.56.200.226 remote-as 65002 statement to neighbor
209.65.200.226 remote-as 65002
Topic 10, Ticket 5 : NAT ACL
Topology Overview (Actual Troubleshooting lab design is for below network design) o
Client Should have IP 10.2.1.3
o
EIGRP 100 is running between switch DSW1 & DSW2
o
OSPF (Process ID 1) is running between R1, R2, R3, R4
o
Network of OSPF is redistributed in EIGRP
o
BGP 65001 is configured on R1 with Webserver cloud AS 65002 o
HSRP is running between DSW1 & DSW2 Switches
The company has created the test bed shown in the layer 2 and layer 3 topology exhibits.
This network consists of four routers, two layer 3 switches and two layer 2 switches.
In the IPv4 layer 3 topology, R1, R2, R3, and R4 are running OSPF with an OSPF process number 1.
DSW1, DSW2 and R4 are running EIGRP with an AS of 10. Redistribution is enabled where necessary.
R1 is running a BGP AS with a number of 65001. This AS has an eBGP connection to AS 65002 in the ISP's network. Because the company's address space is in the private range.
R1 is also providing NAT translations between the inside (10.1.0.0/16 & 10.2.0.0/16) networks and outside (209.65.0.0/24) network.
ASW1 and ASW2 are layer 2 switches.
NTP is enabled on all devices with 209.65.200.226 serving as the master clock source.
The client workstations receive their IP address and default gateway via R4's DHCP server.
The default gateway address of 10.2.1.254 is the IP address of HSRP group 10 which is running on DSW1 and DSW2.
In the IPv6 layer 3 topology R1, R2, and R3 are running OSPFv3 with an OSPF process number 6.
DSW1, DSW2 and R4 are running RIPng process name RIP_ZONE.
The two IPv6 routing domains, OSPF 6 and RIPng are connected via GRE tunnel running over the underlying IPv4 OSPF domain. Redistrution is enabled where necessary.
Recently the implementation group has been using the test bed to do a `proof-of-concept' on several implementations. This involved changing the configuration on one or more of the devices. You will be presented with a series of trouble tickets related to issues introduced during these configurations.
Note: Although trouble tickets have many similar fault indications, each ticket has its own issue and solution.
Each ticket has 3 sub questions that need to be answered & topology remains same.
Question-1 Fault is found on which device,
Question-2 Fault condition is related to,
Question-3 What exact problem is seen & what needs to be done for solution


Client is unable to ping IP 209.65.200.241
Solution
Steps need to follow as below:-
1) When we check on client 1 & Client 2 desktop we are not receiving DHCP address from R4 Ipconfig ----- Client will be receiving IP address 10.2.1.3
2) IP 10.2.1.3 will be able to ping from R4 , R3, R2, R1
3) Look for BGP Neighbourship
Shipbgp summary ----- State of BGP will be in established state & will be able to receive I prefix (209.65.200.241)
4) As per troubleshooting we are able to ping ip 10.2.1.3 from R1 & BGP is also receiving prefix of webserver & we are able to ping the same from R1. Further troubleshooting needs to be done on R1 on serial 0/0/1

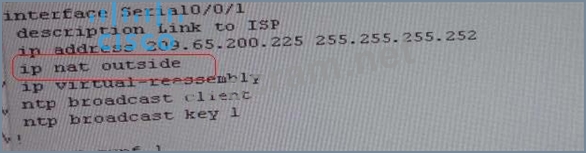

5) Check for running config. i.esh run for interface serial 0/0/1..

!

!

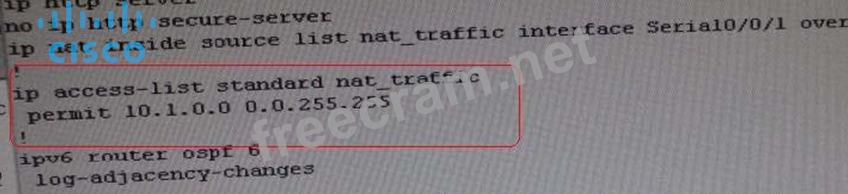

From above snapshot we are able to see that IP needs to be PAT to serial 0/0/1 to reach web server IP (209.65.200.241). But in access-list of NAT IP allowed IP is 10.1.0.0/16 is allowed & need 10.2.0.0 /16 to
6) As per troubleshooting we are able to ping ip 10.2.1.3 from R1 & BGP is also receiving prefix of web server & we are able to ping the same from R1. Its should be checked further for running config of interface for stopping
7) Change required: On R1 we need to add the client IP address for reachability to server to the access list that is used to specify which hosts get NATed.
------------------------------------------------------------------------------------------------------------------------------
