Scenario
You have been asked to evaluate how EIGRP is functioning in a customer network. Access the device consoles to answer the questions.
Instructions
- Enter IOS commands on the device to verify network operation and answer for multiple-choice questions.
- THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
- Click on the individual device icons or use the tab at the bottom of the screen to gain access to the console for each device.
- No console or enable passwords are required.
- To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
- There are four multiple-choice questions with this task. Be sure to answer all five questions before selecting the Next button.

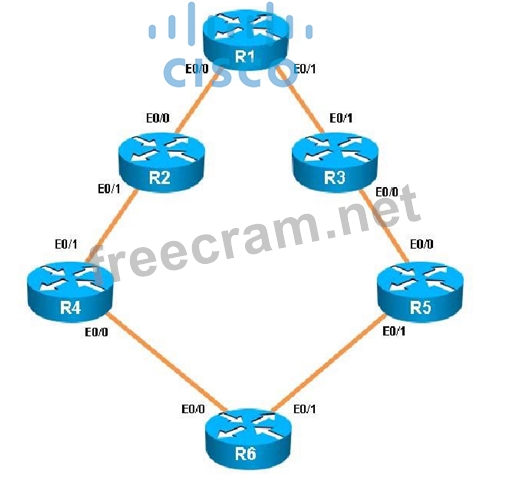

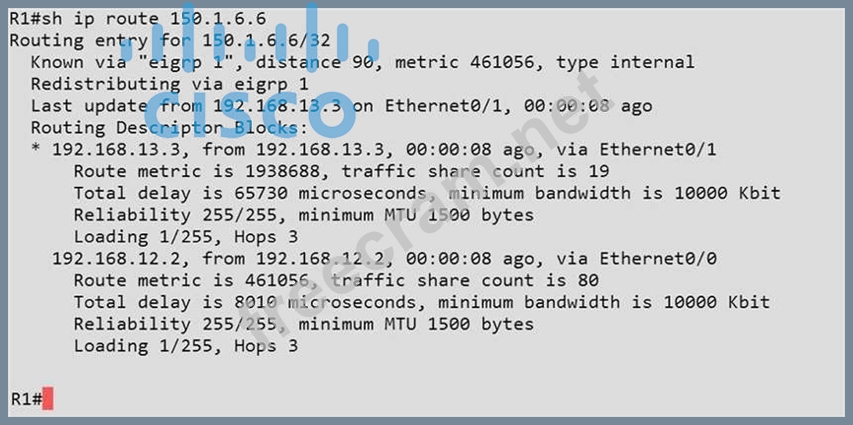

Traffic from R1 to R6's Loopback address is load shared between R1-R2-R4-R6 and R1-R3-R5-R6 paths.
What is the ratio of traffic over each path?
