Question 107/177

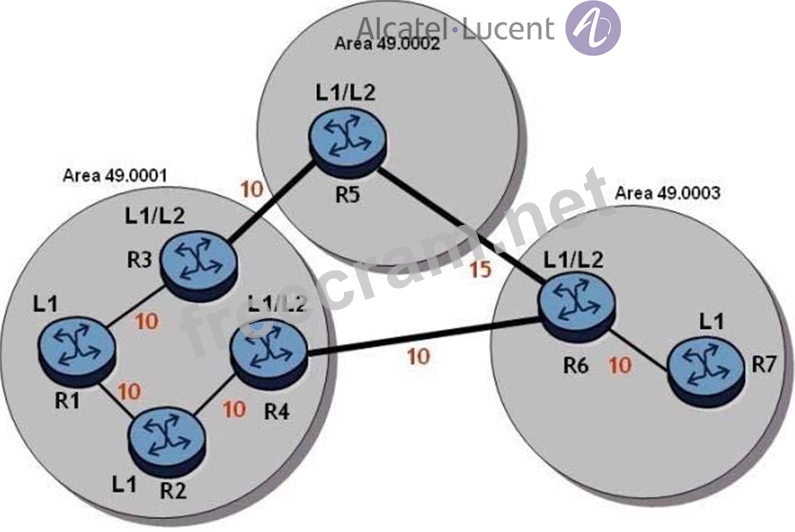

Click on the exhibit.

The numbers beside the links are the metrics for that link.
Given the diagram, what path will traffic follow from router R1 to router R7, and from router R7 to router
R1, if IS-IS is the routing protocol?

A. Router R1 to router R7 will follow (R1-R3-R5-R6-R7). Router R7 to R1 will follow (R7-R6-R4-R2-R1)

B. Router R1 to router R7 will follow (R1-R2-R4-R6-R7). Router R7 to R1 will follow (R7-R6-R5-R3-R1)

C. Router R1 to router R7 will follow (R1-R2-R4-R6-R7). Router R7 to R1 will follow (R7-R6-R4-R2-R1)

D. Router R1 to router R7 will follow (R1-R3-R5-R6-R7). Router R7 to R1 will follow (R7-R6-R5-R3-R1)
