Explanation/Reference:
Explanation:
Analyzing Cache Fusion Transfer Impact Using GCS Statistics
This section describes how to monitor GCS performance by identifying objects read and modified frequently and the service times imposed by the remote access. Waiting for blocks to arrive may constitute a significant portion of the response time, in the same way that reading from disk could increase the block access delays, only that cache fusion transfers in most cases are faster than disk access latencies.

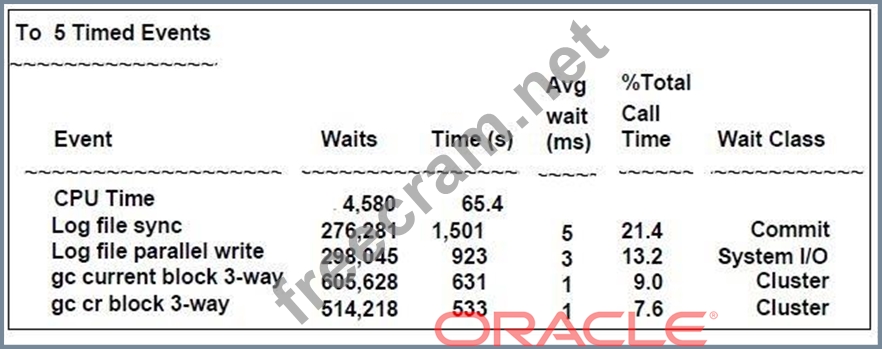

The following wait events indicate that the remotely cached blocks were shipped to the local instance without having been busy, pinned or requiring a log flush:
gc current block 2-way
gc current block 3-way
gc cr block 2-way
gc cr block 3-way
The object statistics for gc current blocks received and gc cr blocks received enable quick identification of the indexes and tables which are shared by the active instances. As mentioned earlier, creating an ADDM analysis will, in most cases, point you to the SQL statements and database objects that could be impacted by interinstance contention.
Any increases in the average wait times for the events mentioned in the preceding list could be caused by the following occurrences:
High load: CPU shortages, long run queues, scheduling delays
Misconfiguration: using public instead of private interconnect for message and block traffic If the average wait times are acceptable and no interconnect or load issues can be diagnosed, then the accumulated time waited can usually be attributed to a few SQL statements which need to be tuned to minimize the number of blocks accessed.
Oracle® Real Application Clusters Administration and Deployment Guide
11g Release 2 (11.2)
